boundary_operation Module Reference

Implements boundary_operation_t.

Data Types
type	boundary_operation_t
	A simulation component for boundary reductions on labelled zones. More...

Functions/Subroutines
subroutine	boundary_operation_init_from_json (this, json, case)
	Construct from JSON.
subroutine	boundary_operation_init_common (this, name, coef, zone_indices, field_name, operations, log, output_filename)
	Common constructor shared by all public constructors.
subroutine	boundary_operation_init_from_controllers (this, name, case, order, preprocess_controller, compute_controller, output_controller, zone_indices, field_name, operations, log, output_filename)
	Construct from explicit time-based controllers.
subroutine	boundary_operation_init_from_controllers_properties (this, name, case, order, preprocess_control, preprocess_value, compute_control, compute_value, output_control, output_value, zone_indices, field_name, operations, log, output_filename)
	Construct from time-based controller properties.
subroutine	boundary_operation_free (this)
	Free all resources owned by the component.
subroutine	boundary_operation_compute (this, time)
	Compute and optionally output the requested boundary operations.
pure character(len=:) function, allocatable	left_pad (text, width)
	Left-pad a string to a fixed width.

Function/Subroutine Documentation

boundary_operation_compute()

subroutine boundary_operation::boundary_operation_compute ( class(boundary_operation_t), intent(inout)  this, type(time_state_t), intent(in)  time  )

private

Parameters

time	Current simulation time state.

Definition at line 390 of file boundary_operation.f90.

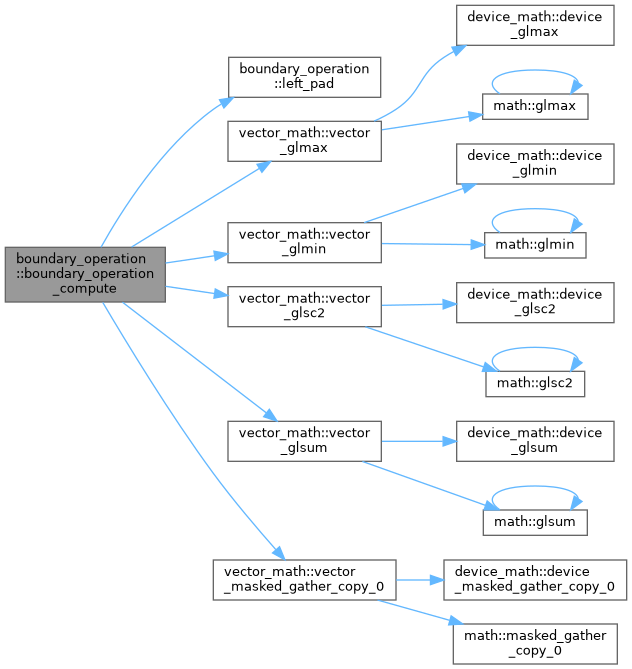

Here is the call graph for this function:

boundary_operation_free()

subroutine boundary_operation::boundary_operation_free ( class(boundary_operation_t), intent(inout)  this )

private

Definition at line 370 of file boundary_operation.f90.

boundary_operation_init_common()

subroutine boundary_operation::boundary_operation_init_common ( class(boundary_operation_t), intent(inout)  this, character(len=*), intent(in)  name, type(coef_t), intent(inout), target  coef, integer, dimension(:), intent(in)  zone_indices, character(len=*), intent(in)  field_name, character(len=*), dimension(:), intent(in)  operations, logical, intent(in)  log, character(len=*), intent(in), optional  output_filename  )

private

Parameters

name	Unique simcomp name.
coef	SEM coefficients.
zone_indices	Labelled zones to include.
field_name	Name of the registered field to process.
operations	Requested operations in output order.
log	Whether to emit tabular log output.
output_filename	Optional CSV output filename.

Definition at line 164 of file boundary_operation.f90.

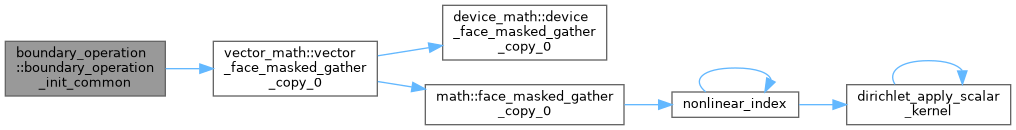

Here is the call graph for this function:

boundary_operation_init_from_controllers()

subroutine boundary_operation::boundary_operation_init_from_controllers ( class(boundary_operation_t), intent(inout)  this, character(len=*), intent(in)  name, class(case_t), intent(inout), target  case, integer, intent(in)  order, type(time_based_controller_t), intent(in)  preprocess_controller, type(time_based_controller_t), intent(in)  compute_controller, type(time_based_controller_t), intent(in)  output_controller, integer, dimension(:), intent(in)  zone_indices, character(len=*), intent(in)  field_name, character(len=*), dimension(:), intent(in)  operations, logical, intent(in), optional  log, character(len=*), intent(in), optional  output_filename  )

private

Parameters

name	Unique simcomp name.
case	Simulation case owning the simcomp.
order	Execution priority.
preprocess_controller	Controller for preprocessing.
compute_controller	Controller for computation.
output_controller	Controller for output.
zone_indices	Labelled zones to include.
field_name	Name of the registered field to process.
operations	Requested operations in output order.
log	Optional flag controlling log output.
output_filename	Optional CSV output filename.

Definition at line 281 of file boundary_operation.f90.

boundary_operation_init_from_controllers_properties()

subroutine boundary_operation::boundary_operation_init_from_controllers_properties ( class(boundary_operation_t), intent(inout)  this, character(len=*), intent(in)  name, class(case_t), intent(inout), target  case, integer, intent(in)  order, character(len=*), intent(in)  preprocess_control, real(kind=rp), intent(in)  preprocess_value, character(len=*), intent(in)  compute_control, real(kind=rp), intent(in)  compute_value, character(len=*), intent(in)  output_control, real(kind=rp), intent(in)  output_value, integer, dimension(:), intent(in)  zone_indices, character(len=*), intent(in)  field_name, character(len=*), dimension(:), intent(in)  operations, logical, intent(in), optional  log, character(len=*), intent(in), optional  output_filename  )

private

Parameters

name	Unique simcomp name.
case	Simulation case owning the simcomp.
order	Execution priority.
preprocess_control	Control mode for preprocessing.
preprocess_value	Control value for preprocessing.
compute_control	Control mode for computation.
compute_value	Control value for computation.
output_control	Control mode for output.
output_value	Control value for output.
zone_indices	Labelled zones to include.
field_name	Name of the registered field to process.
operations	Requested operations in output order.
log	Optional flag controlling log output.
output_filename	Optional CSV output filename.

Definition at line 330 of file boundary_operation.f90.

boundary_operation_init_from_json()

subroutine boundary_operation::boundary_operation_init_from_json	(	class(boundary_operation_t), intent(inout), target	this,
		type(json_file), intent(inout)	json,
		class(case_t), intent(inout), target	case
	)

Parameters

json	JSON object describing the simcomp.
case	Simulation case.

Definition at line 125 of file boundary_operation.f90.

left_pad()

pure character(len=:) function, allocatable boundary_operation::left_pad ( character(len=*), intent(in)  text, integer, intent(in)  width  )

private

Parameters

text	Input string.
width	Width of the padded result.

Definition at line 495 of file boundary_operation.f90.

Here is the caller graph for this function:
