field_array::field_array_t Type Reference

field_array_t, To be able to group fields together More...

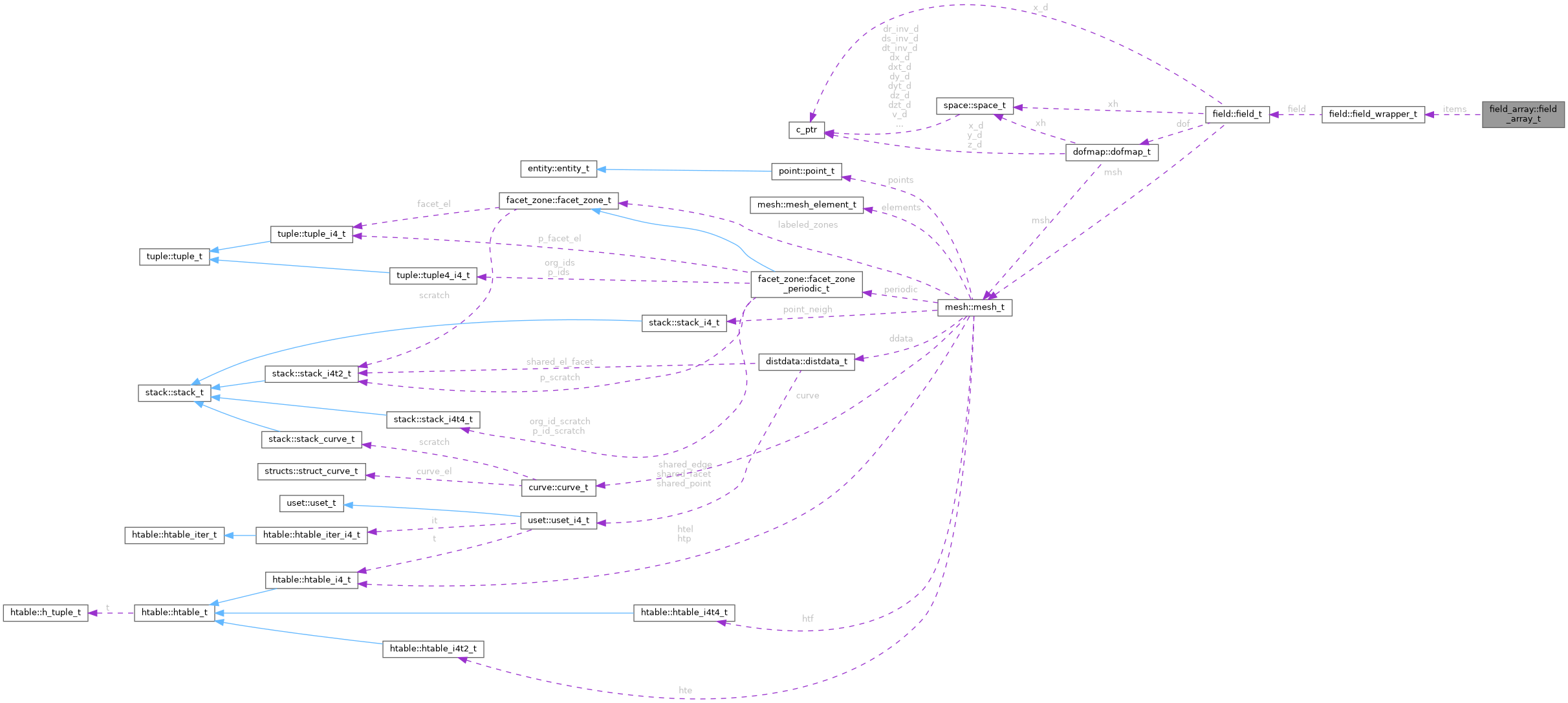

Collaboration diagram for field_array::field_array_t:

Public Member Functions
procedure, pass(this)	init (this, size)
	Constructor. Allocates array and pointers.
procedure, pass(this)	free (this)
	Destructor.
procedure, pass(this)	append (this, f)
	Append a field to the list.
generic	get (this, i)
	Get an item pointer by array index.
generic	get (this, name)
	Get an item pointer by field name.
procedure, pass(this)	get_by_index (this, i)
	Get an item pointer by array index.
procedure, pass(this)	get_by_name (this, name)
	Get an item pointer by field name.
generic	assign (this, i, f)
	Point item at given index.
generic	assign (this, i, wrapper)
	Point item at given index.
procedure, pass(this)	assign_to_field (this, i, f)
	Assign item at a given index to field, by copy assignment.
procedure, pass(this)	assign_to_field_wrapper (this, i, wrapper)
	Point item at a given index.
procedure, pass(this)	x_d (this, i)
	Get device pointer for a given index.
procedure, pass(this)	x (this, i)
	Get pointer to the raw data array for a given index.
procedure, pass(this)	size (this)
	Get number of items in the list.
procedure, pass(this)	item_size (this, i)
	Get the size of dofmap for an item in the list.
procedure, pass(this)	dof (this, i)
	Get the dofmap for an item in the list.
procedure, pass(this)	xh (this, i)
	Get the space for an item in the list.
procedure, pass(this)	msh (this, i)
	Get the mesh for an item in the list.
procedure, pass(this)	internal_dofmap (this, i)
	Check wether the dofmap is internal for an item in the list.
procedure, pass(this)	name (this, i)
	Get the name for an item in the list.

Public Attributes
type(field_wrapper_t), dimension(:), allocatable	items

Detailed Description

Definition at line 15 of file field_array.f90.

Member Function/Subroutine Documentation

append()

procedure, pass(this) field_array::field_array_t::append	(	class(field_array_t), intent(inout)	this,
		class(field_t), intent(in)	f
	)

Parameters

f	The field to append.

Definition at line 23 of file field_array.f90.

assign() [1/2]

generic field_array::field_array_t::assign	(	class(field_array_t), intent(inout)	this,
		integer, intent(in)	i,
		type(field_t), intent(in)	f
	)

Parameters

i	The index of the item.
ptr	A field pointer to point the item to.

Definition at line 30 of file field_array.f90.

assign() [2/2]

generic field_array::field_array_t::assign	(	class(field_array_t), intent(inout)	this,
		integer, intent(in)	i,
		type(field_wrapper_t), intent(in), target	wrapper
	)

Parameters

i	The index of the item.
ptr	An encapsulated field pointer to point the item to.

Definition at line 30 of file field_array.f90.

assign_to_field()

procedure, pass(this) field_array::field_array_t::assign_to_field	(	class(field_array_t), intent(inout)	this,
		integer, intent(in)	i,
		type(field_t), intent(in)	f
	)

Parameters

i	The index of the item.
ptr	A field pointer to point the item to.

Definition at line 31 of file field_array.f90.

assign_to_field_wrapper()

procedure, pass(this) field_array::field_array_t::assign_to_field_wrapper	(	class(field_array_t), intent(inout)	this,
		integer, intent(in)	i,
		type(field_wrapper_t), intent(in), target	wrapper
	)

Parameters

i	The index of the item.
ptr	An encapsulated field pointer to point the item to.

Definition at line 32 of file field_array.f90.

dof()

procedure, pass(this) field_array::field_array_t::dof	(	class(field_array_t), intent(in), target	this,
		integer, intent(in)	i
	)

Parameters

i	The index of the item.

Definition at line 44 of file field_array.f90.

free()

procedure, pass(this) field_array::field_array_t::free

(

class(field_array_t), intent(inout)

this

)

Definition at line 21 of file field_array.f90.

get() [1/2]

generic field_array::field_array_t::get	(	class(field_array_t), intent(inout)	this,
		integer, intent(in)	i
	)

Parameters

i	The index of the item.

Definition at line 24 of file field_array.f90.

get() [2/2]

generic field_array::field_array_t::get	(	class(field_array_t), intent(inout)	this,
		character(len=*), intent(in)	name
	)

Parameters

i	The index of the item.

Definition at line 24 of file field_array.f90.

get_by_index()

procedure, pass(this) field_array::field_array_t::get_by_index	(	class(field_array_t), intent(inout)	this,
		integer, intent(in)	i
	)

Parameters

i	The index of the item.

Definition at line 26 of file field_array.f90.

get_by_name()

procedure, pass(this) field_array::field_array_t::get_by_name	(	class(field_array_t), intent(inout)	this,
		character(len=*), intent(in)	name
	)

Parameters

i	The index of the item.

Definition at line 28 of file field_array.f90.

init()

procedure, pass(this) field_array::field_array_t::init	(	class(field_array_t), intent(inout)	this,
		integer, intent(in)	size
	)

Parameters

size	The size of the list to preallocate

Definition at line 19 of file field_array.f90.

internal_dofmap()

procedure, pass(this) field_array::field_array_t::internal_dofmap	(	class(field_array_t), intent(in), target	this,
		integer, intent(in)	i
	)

Parameters

i	The index of the item.

Definition at line 50 of file field_array.f90.

item_size()

procedure, pass(this) field_array::field_array_t::item_size	(	class(field_array_t), intent(in), target	this,
		integer, intent(in)	i
	)

Parameters

i	The index of the item.

Definition at line 42 of file field_array.f90.

msh()

procedure, pass(this) field_array::field_array_t::msh	(	class(field_array_t), intent(in), target	this,
		integer, intent(in)	i
	)

Parameters

i	The index of the item.

Definition at line 48 of file field_array.f90.

name()

procedure, pass(this) field_array::field_array_t::name	(	class(field_array_t), intent(in), target	this,
		integer, intent(in)	i
	)

Parameters

i	The index of the item.

Definition at line 52 of file field_array.f90.

size()

procedure, pass(this) field_array::field_array_t::size

(

class(field_array_t), intent(in)

this

)

Definition at line 40 of file field_array.f90.

x()

procedure, pass(this) field_array::field_array_t::x	(	class(field_array_t), intent(in), target	this,
		integer, intent(in)	i
	)

Definition at line 38 of file field_array.f90.

x_d()

procedure, pass(this) field_array::field_array_t::x_d	(	class(field_array_t), intent(in)	this,
		integer, intent(in)	i
	)

Parameters

i	The index of the item.

Definition at line 36 of file field_array.f90.

xh()

procedure, pass(this) field_array::field_array_t::xh	(	class(field_array_t), intent(in), target	this,
		integer, intent(in)	i
	)

Parameters

i	The index of the item.

Definition at line 46 of file field_array.f90.

Member Data Documentation

items

type(field_wrapper_t), dimension(:), allocatable field_array::field_array_t::items

Definition at line 16 of file field_array.f90.

---

The documentation for this type was generated from the following file:

• /home/runner/work/neko/neko/src/field/field_array.f90
