field::field_wrapper_t Type Reference

field_wrapper_t, used to wrap an allocated field for use in a field list More...

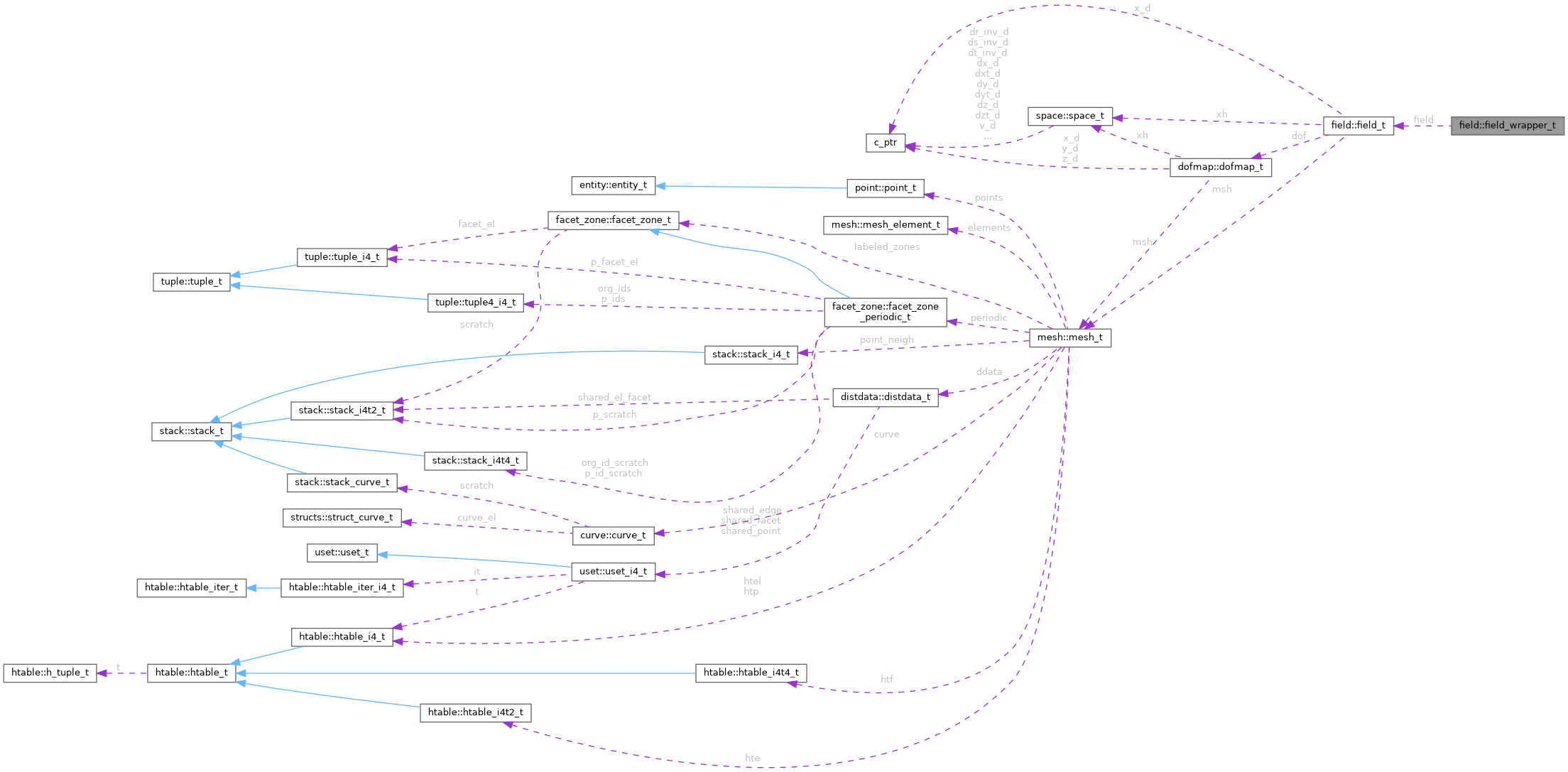

Collaboration diagram for field::field_wrapper_t:

Public Member Functions
generic	init (this, f)
	Constructor. Allocates a field and assigns the pointer.
generic	init (this, msh, space, fld_name)
	Constructor. Allocates a field and assigns the pointer.
generic	init (this, dof, fld_name)
	Constructor. Allocates a field and assigns the pointer.
procedure, pass(this)	init_field (this, f)
	Initialize a field wrapper with an allocated field.
procedure, pass(this)	init_internal_dof (this, msh, space, fld_name)
	Initialize a field wrapper with an internal dofmap.
procedure, pass(this)	init_external_dof (this, dof, fld_name)
	Initialize a field wrapper with an external dofmap.
procedure, pass(this)	free (this)
	Destructor. Frees the field and nullifies the pointer.

Public Attributes
type(field_t), pointer	field => null()

Detailed Description

Definition at line 92 of file field.f90.

Member Function/Subroutine Documentation

free()

procedure, pass(this) field::field_wrapper_t::free

(

class(field_wrapper_t), intent(inout)

this

)

Definition at line 106 of file field.f90.

init() [1/3]

generic field::field_wrapper_t::init	(	class(field_wrapper_t), intent(inout)	this,
		type(dofmap_t), intent(in), target	dof,
		character(len=*), optional	fld_name
	)

Definition at line 96 of file field.f90.

init() [2/3]

generic field::field_wrapper_t::init	(	class(field_wrapper_t), intent(inout)	this,
		type(field_t), intent(in)	f
	)

Definition at line 96 of file field.f90.

init() [3/3]

generic field::field_wrapper_t::init	(	class(field_wrapper_t), intent(inout)	this,
		type(mesh_t), intent(in), target	msh,
		type(space_t), intent(in), target	space,
		character(len=*), optional	fld_name
	)

Definition at line 96 of file field.f90.

init_external_dof()

procedure, pass(this) field::field_wrapper_t::init_external_dof	(	class(field_wrapper_t), intent(inout)	this,
		type(dofmap_t), intent(in), target	dof,
		character(len=*), optional	fld_name
	)

Definition at line 103 of file field.f90.

init_field()

procedure, pass(this) field::field_wrapper_t::init_field	(	class(field_wrapper_t), intent(inout)	this,
		type(field_t), intent(in)	f
	)

Definition at line 98 of file field.f90.

init_internal_dof()

procedure, pass(this) field::field_wrapper_t::init_internal_dof	(	class(field_wrapper_t), intent(inout)	this,
		type(mesh_t), intent(in), target	msh,
		type(space_t), intent(in), target	space,
		character(len=*), optional	fld_name
	)

Definition at line 100 of file field.f90.

Member Data Documentation

field

type(field_t), pointer field::field_wrapper_t::field => null()

Definition at line 93 of file field.f90.

---

The documentation for this type was generated from the following file:

• /home/runner/work/neko/neko/src/field/field.f90
