spalding Module Reference

Implements spalding_t.

Data Types
type	spalding_t
	Wall model based on Spalding's law of the wall. Reference: http://dx.doi.org/10.1115/1.3641728. More...

Functions/Subroutines
subroutine	spalding_init (this, scheme_name, coef, msk, facet, json)
	Constructor from JSON.
subroutine	spalding_partial_init (this, coef, scheme_name, json)
	Constructor from JSON.
subroutine	spalding_finalize (this, msk, facet, bc_name, user)
	Finalize the construction using the mask and facet arrays of the bc.
subroutine	spalding_init_from_components (this, scheme_name, coef, msk, facet, sampler, kappa, b)
	Constructor from components.
subroutine	spalding_compute_nu (this)
	Compute the kinematic viscosity vector.
subroutine	spalding_free (this)
	Destructor for the spalding_t (base) class.
subroutine	spalding_compute (this, t, tstep)
	Compute the wall shear stress.

Function/Subroutine Documentation

spalding_compute()

subroutine spalding::spalding_compute ( class(spalding_t), intent(inout)  this, real(kind=rp), intent(in)  t, integer, intent(in)  tstep  )

private

Parameters

t	The time value.
tstep	The current time-step.

Definition at line 234 of file spalding.f90.

Here is the call graph for this function:

spalding_compute_nu()

subroutine spalding::spalding_compute_nu ( class(spalding_t), intent(inout)  this )

private

Definition at line 194 of file spalding.f90.

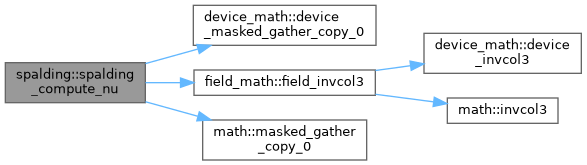

Here is the call graph for this function:

spalding_finalize()

subroutine spalding::spalding_finalize ( class(spalding_t), intent(inout)  this, integer, dimension(:), intent(in)  msk, integer, dimension(:), intent(in)  facet, character(len=*), intent(in), optional  bc_name, type(user_t), intent(in), optional, target  user  )

private

Parameters

msk	The boundary mask.
facet	The boundary facets.

Definition at line 144 of file spalding.f90.

spalding_free()

subroutine spalding::spalding_free ( class(spalding_t), intent(inout)  this )

private

Definition at line 219 of file spalding.f90.

spalding_init()

subroutine spalding::spalding_init	(	class(spalding_t), intent(inout)	this,
		character(len=*), intent(in)	scheme_name,
		type(coef_t), intent(in)	coef,
		integer, dimension(:), intent(in)	msk,
		integer, dimension(:), intent(in)	facet,
		type(json_file), intent(inout)	json
	)

Parameters

scheme_name	The name of the scheme for which the wall model is used.
coef	SEM coefficients.
msk	The boundary mask.
facet	The boundary facets.
json	A dictionary with parameters.

Definition at line 98 of file spalding.f90.

Here is the call graph for this function:

spalding_init_from_components()

subroutine spalding::spalding_init_from_components ( class(spalding_t), intent(inout)  this, character(len=*), intent(in)  scheme_name, type(coef_t), intent(in)  coef, integer, dimension(:), intent(in)  msk, integer, dimension(:), intent(in)  facet, class(wall_sampler_t), intent(inout), allocatable  sampler, real(kind=rp), intent(in)  kappa, real(kind=rp), intent(in)  b  )

private

Parameters

scheme_name	The name of the scheme for which the wall model is used.
coef	SEM coefficients.
msk	The boundary mask.
facet	The boundary facets.
sampler	The sampling strategy. Ownership is transferred.
kappa	The von Karman coefficient.
B	The log-law intercept.

Definition at line 168 of file spalding.f90.

spalding_partial_init()

subroutine spalding::spalding_partial_init ( class(spalding_t), intent(inout)  this, type(coef_t), intent(in)  coef, character(len=*), intent(in)  scheme_name, type(json_file), intent(inout)  json  )

private

Parameters

coef	SEM coefficients.
json	A dictionary with parameters.

Definition at line 119 of file spalding.f90.
