Implements the force_torque_t type.

Data Types
type	force_torque_t
	A simulation component that computes the force and torque on a given boundary zone. More...

Functions/Subroutines
subroutine	force_torque_init_from_json (this, json, case)
	Constructor from json.

subroutine	force_torque_init_from_controllers (this, name, case, order, preprocess_controller, compute_controller, output_controller, fluid_name, zone_id, zone_name, center, scale, coef, long_print)
	Constructor from components, passing controllers.

subroutine	force_torque_init_from_controllers_properties (this, name, case, order, preprocess_control, preprocess_value, compute_control, compute_value, output_control, output_value, fluid_name, zone_name, zone_id, center, scale, coef, long_print)
	Constructor from components, passing properties to the time_based_controller` components in the base type.

subroutine	force_torque_init_common (this, name, fluid_name, zone_id, zone_name, center, scale, coef, long_print)
	Common part of constructors.

subroutine	force_torque_free (this)
	Destructor.

subroutine	force_torque_compute (this, time)
	Compute the force_torque field.

Function/Subroutine Documentation

◆ force_torque_compute()

subroutine force_torque::force_torque_compute	(	class(force_torque_t), intent(inout)	this,
		type(time_state_t), intent(in)	time
	)

private

Parameters

time	The current time state.

Definition at line 392 of file force_torque.f90.

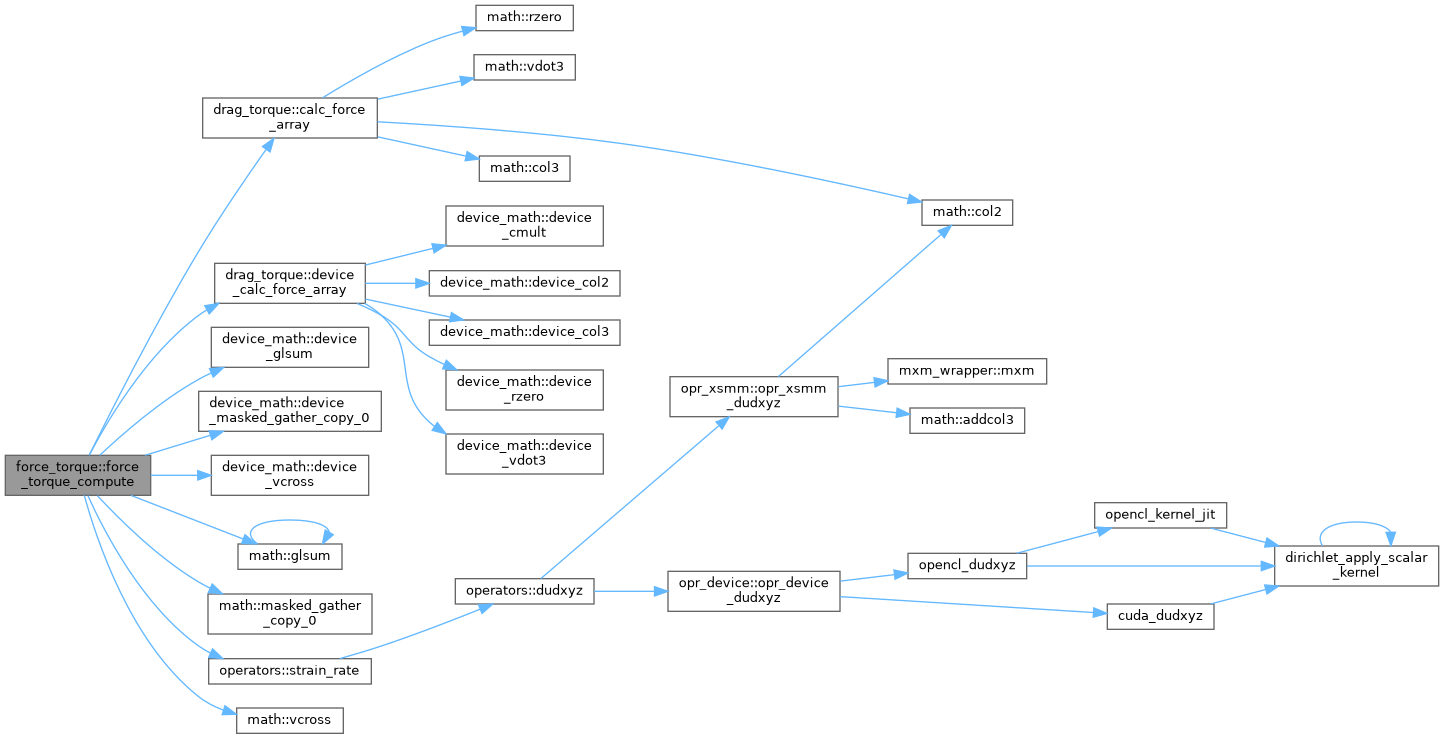

Here is the call graph for this function:

subroutine force_torque::force_torque_free ( class(force_torque_t), intent(inout) this )

private

Definition at line 353 of file force_torque.f90.

subroutine force_torque::force_torque_init_common	(	class(force_torque_t), intent(inout)	this,
		character(len=*), intent(in)	name,
		character(len=*), intent(in)	fluid_name,
		integer, intent(in)	zone_id,
		character(len=*), intent(in)	zone_name,
		real(kind=rp), dimension(3), intent(in)	center,
		real(kind=rp), intent(in)	scale,
		type(coef_t), intent(in), target	coef,
		logical, intent(in)	long_print
	)

private

Parameters

name	The unique name of the simcomp.
fluid_name	The name of the fluid solver.
zone_id	The id of the boundary zone.
zone_name	The name of the boundary zone, to use in the log.
center	The center of the torque calculation.
scale	Normalization factor.
coef	The SEM coefficients.
long_print	If true, use a more precise print format.

Definition at line 241 of file force_torque.f90.

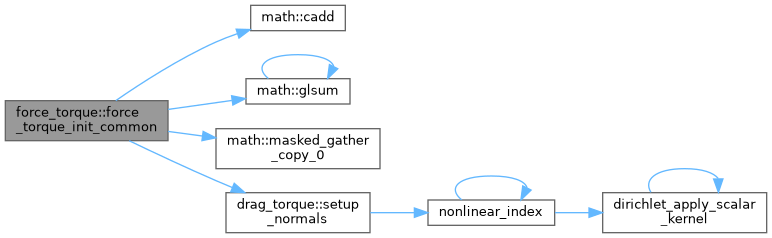

Here is the call graph for this function:

subroutine force_torque::force_torque_init_from_controllers	(	class(force_torque_t), intent(inout)	this,
		character(len=*), intent(in)	name,
		class(case_t), intent(inout), target	case,
		integer	order,
		type(time_based_controller_t), intent(in)	preprocess_controller,
		type(time_based_controller_t), intent(in)	compute_controller,
		type(time_based_controller_t), intent(in)	output_controller,
		character(len=*), intent(in)	fluid_name,
		integer, intent(in)	zone_id,
		character(len=*), intent(in)	zone_name,
		real(kind=rp), dimension(3), intent(in)	center,
		real(kind=rp), intent(in)	scale,
		type(coef_t), intent(in), target	coef,
		logical, intent(in)	long_print
	)

private

Parameters

name	The unique name of the simcomp.
case	The simulation case object.
order	The execution oder priority of the simcomp.
preprocess_controller	The controller for running preprocessing.
compute_controller	The controller for running compute.
output_controller	The controller for producing output.
fluid_name	The name of the fluid solver.
zone_id	The id of the boundary zone.
zone_name	The name of the boundary zone, to use in the log.
center	The center of the torque calculation.
scale	Normalization factor.
coef	The SEM coefficients.
long_print	If true, use a more precise print format.

Definition at line 159 of file force_torque.f90.

subroutine force_torque::force_torque_init_from_controllers_properties	(	class(force_torque_t), intent(inout)	this,
		character(len=*), intent(in)	name,
		class(case_t), intent(inout), target	case,
		integer	order,
		character(len=*), intent(in)	preprocess_control,
		real(kind=rp), intent(in)	preprocess_value,
		character(len=*), intent(in)	compute_control,
		real(kind=rp), intent(in)	compute_value,
		character(len=*), intent(in)	output_control,
		real(kind=rp), intent(in)	output_value,
		character(len=*), intent(in)	fluid_name,
		character(len=*), intent(in)	zone_name,
		integer, intent(in)	zone_id,
		real(kind=rp), dimension(3), intent(in)	center,
		real(kind=rp), intent(in)	scale,
		type(coef_t), intent(in), target	coef,
		logical, intent(in)	long_print
	)

private

Parameters

name	The unique name of the simcomp.
case	The simulation case object.
order	The execution oder priority of the simcomp.
preprocess_controller	Control mode for preprocessing.
preprocess_value	Value parameter for preprocessing.
compute_controller	Control mode for computing.
compute_value	Value parameter for computing.
output_controller	Control mode for output.
output_value	Value parameter for output.
fluid_name	The name of the fluid solver.
zone_id	The id of the boundary zone.
zone_name	The name of the boundary zone, to use in the log.
center	The center of the torque calculation.
scale	Normalization factor.
coef	The SEM coefficients.
long_print	If true, use a more precise print format.

Definition at line 202 of file force_torque.f90.

subroutine force_torque::force_torque_init_from_json	(	class(force_torque_t), intent(inout), target	this,
		type(json_file), intent(inout)	json,
		class(case_t), intent(inout), target	case
	)

Definition at line 121 of file force_torque.f90.
