A simulation component for total vector flux through labelled zones. More...

Inheritance diagram for boundary_flux::boundary_flux_t:

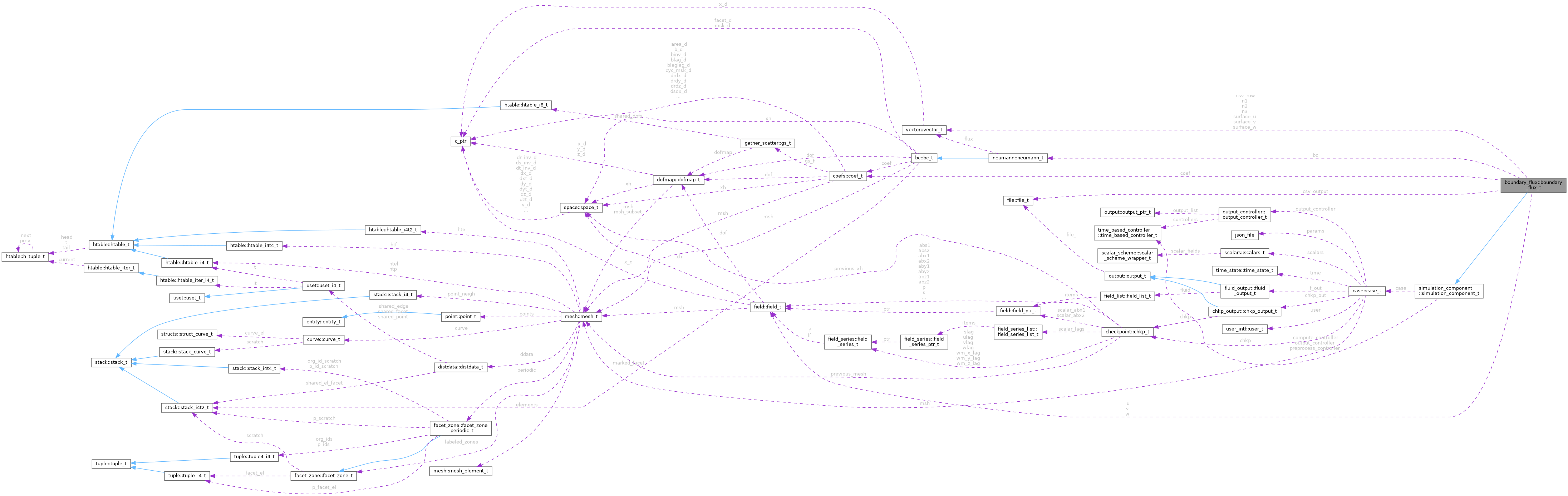

Collaboration diagram for boundary_flux::boundary_flux_t:

[legend]

Public Member Functions
procedure, pass(this)	init (this, json, case)
	Construct the component from a case-file JSON object.

generic	init_from_components (this, name, case, order, preprocess_controller, compute_controller, output_controller, zone_indices, field_names, log, output_filename)
	Generic constructor from components.

generic	init_from_components (this, name, case, order, preprocess_control, preprocess_value, compute_control, compute_value, output_control, output_value, zone_indices, field_names, log, output_filename)
	Generic constructor from components.

procedure, pass(this)	init_from_controllers (this, name, case, order, preprocess_controller, compute_controller, output_controller, zone_indices, field_names, log, output_filename)
	Construct from explicit time-based controllers.

procedure, pass(this)	init_from_controllers_properties (this, name, case, order, preprocess_control, preprocess_value, compute_control, compute_value, output_control, output_value, zone_indices, field_names, log, output_filename)
	Construct from time-based controller properties.

procedure, pass(this)	free (this)
	Free the component.

procedure, pass(this)	compute_ (this, time)
	Compute the total boundary flux.

procedure, pass(this)	init_base (this, json, case)
	Constructor for the simulation_component_t (base) class.

generic	init_base_from_components (this, case, order, preprocess_control, preprocess_value, compute_control, compute_value, output_control, output_value)
	Constructor for the simulation_component_t (base) class from components.

generic	init_base_from_components (this, case, order, preprocess_controller, compute_controller, output_controller)
	Constructor for the simulation_component_t (base) class from components.

procedure, pass(this)	init_base_from_controllers (this, case, order, preprocess_controller, compute_controller, output_controller)
	Constructor for the simulation_component_t (base) class from time_based_controllers, essentially directly from all components (we reserve the `_from_components` name for the generic binding).

procedure, pass(this)	init_base_from_controllers_properties (this, case, order, preprocess_control, preprocess_value, compute_control, compute_value, output_control, output_value)
	Constructor for the simulation_component_t (base) class from properties of time_based_controllers, so the latter are constructed instead of assigned.

procedure, pass(this)	free_base (this)
	Destructor for the simulation_component_t (base) class.

procedure, pass(this)	restart (this, time)
	Wrapper for calling `set_counter` for the time based controllers. Serves as the public interface.

procedure, pass(this)	preprocess (this, time)
	Wrapper for calling `preprocess_` based on the `preprocess_controller`. Serves as the public interface.

procedure, pass(this)	compute (this, time)
	Wrapper for calling `compute_` based on the `compute_controller`. Serves as the public interface.

procedure(simulation_component_init), deferred, pass	init (this, json, case)
	The common constructor using a JSON dictionary.

procedure(simulation_component_free), deferred, pass	free (this)
	Destructor.

procedure, pass(this)	preprocess_ (this, time)
	The preprocessing function to be executed during the run.

procedure, pass(this)	compute_ (this, time)
	The main function to be executed during the run.

procedure, pass(this)	restart_ (this, time)
	The restart function to be called upon restarting simulation.

procedure, pass(this)	parse_json (this, json, case_params, preprocess_control, preprocess_value, compute_control, compute_value, output_control, output_value)
	JSON parameter parser for the time-based controllers.

Public Attributes
type(field_t), pointer	u => null()
	X component field.

type(field_t), pointer	v => null()
	Y component field.

type(field_t), pointer	w => null()
	Z component field.

type(coef_t), pointer	coef => null()
	Surface coefficients.

type(neumann_t)	bc
	Boundary mask built from the chosen zones.

integer, dimension(:), allocatable	zone_indices
	Labelled zones to include.

character(len=80), dimension(:), allocatable	field_names
	Names of the input vector component fields.

logical	log = .true.
	Whether to write results to the log.

logical	csv_output_enabled = .false.
	Whether CSV output is enabled.

type(file_t)	csv_output
	Optional CSV output file.

type(vector_t)	csv_row
	Reusable row buffer for CSV output.

type(vector_t)	n1
	Area-weighted x normals.

type(vector_t)	n2
	Area-weighted y normals.

type(vector_t)	n3
	Area-weighted z normals.

type(vector_t)	surface_u
	Reusable gathered x boundary values.

type(vector_t)	surface_v
	Reusable gathered y boundary values.

type(vector_t)	surface_w
	Reusable gathered z boundary values.

real(kind=rp)	flux = 0.0_rp
	Most recently computed total flux.

type(case_t), pointer	case
	Pointer to the simulation case.

type(time_based_controller_t)	preprocess_controller
	Controller for when to run `preprocess`.

type(time_based_controller_t)	compute_controller
	Controller for when to run `compute`.

type(time_based_controller_t)	output_controller
	Controller for when to do output.

integer	order
	The execution order, lowest excutes first.

character(:), allocatable	name
	Unique name of the simcomp.

Private Member Functions
procedure, pass(this), private	init_common (this, name, coef, zone_indices, field_names, log, output_filename)
	Common constructor used by all public constructors.

Detailed Description

Note: Fluxes inside the domain are considered positive.

Definition at line 60 of file boundary_flux.f90.

Member Function/Subroutine Documentation

◆ compute()

procedure, pass(this) simulation_component::simulation_component_t::compute	(	class(simulation_component_t), intent(inout)	this,
		type(time_state_t), intent(in)	time
	)

inherited

Parameters

time	The current time.

Definition at line 91 of file simulation_component.f90.

◆ compute_() [1/2]

procedure, pass(this) boundary_flux::boundary_flux_t::compute_	(	class(boundary_flux_t), intent(inout)	this,
		type(time_state_t), intent(in)	time
	)

Parameters

time	Current simulation time state.

Definition at line 115 of file boundary_flux.f90.

◆ compute_() [2/2]

procedure, pass(this) simulation_component::simulation_component_t::compute_	(	class(simulation_component_t), intent(inout)	this,
		type(time_state_t), intent(in)	time
	)

inherited

Parameters

time	The current time.

Definition at line 99 of file simulation_component.f90.

◆ free() [1/2]

procedure, pass(this) boundary_flux::boundary_flux_t::free ( class(boundary_flux_t), intent(inout) this )

Definition at line 113 of file boundary_flux.f90.

◆ free() [2/2]

procedure(simulation_component_free), deferred, pass simulation_component::simulation_component_t::free ( class(simulation_component_t), intent(inout) this )

pure virtualinherited

Definition at line 95 of file simulation_component.f90.

◆ free_base()

procedure, pass(this) simulation_component::simulation_component_t::free_base ( class(simulation_component_t), intent(inout) this )

inherited

Definition at line 81 of file simulation_component.f90.

◆ init() [1/2]

procedure, pass(this) boundary_flux::boundary_flux_t::init	(	class(boundary_flux_t), intent(inout), target	this,
		type(json_file), intent(inout)	json,
		class(case_t), intent(inout), target	case
	)

Parameters

json	JSON object describing the simcomp.
case	Simulation case.

Definition at line 99 of file boundary_flux.f90.

◆ init() [2/2]

procedure(simulation_component_init), deferred, pass simulation_component::simulation_component_t::init	(	class(simulation_component_t), intent(inout), target	this,
		type(json_file), intent(inout)	json,
		class(case_t), intent(inout), target	case
	)

pure virtualinherited

Definition at line 93 of file simulation_component.f90.

◆ init_base()

procedure, pass(this) simulation_component::simulation_component_t::init_base	(	class(simulation_component_t), intent(inout)	this,
		type(json_file), intent(inout)	json,
		class(case_t), intent(inout), target	case
	)

inherited

Definition at line 65 of file simulation_component.f90.

◆ init_base_from_components() [1/2]

generic simulation_component::simulation_component_t::init_base_from_components	(	class(simulation_component_t), intent(inout)	this,
		class(case_t), intent(inout), target	case,
		integer	order,
		character(len=*), intent(in)	preprocess_control,
		real(kind=rp), intent(in)	preprocess_value,
		character(len=*), intent(in)	compute_control,
		real(kind=rp), intent(in)	compute_value,
		character(len=*), intent(in)	output_control,
		real(kind=rp), intent(in)	output_value
	)

inherited

Parameters

case	The simulation case object.
order	The execution oder priority of the simcomp.
preprocess_controller	Control mode for preprocessing.
preprocess_value	Value parameter for preprocessing.
compute_controller	Control mode for computing.
compute_value	Value parameter for computing.
output_controller	Control mode for output.
output_value	Value parameter for output.

Definition at line 67 of file simulation_component.f90.

◆ init_base_from_components() [2/2]

generic simulation_component::simulation_component_t::init_base_from_components	(	class(simulation_component_t), intent(inout)	this,
		class(case_t), intent(inout), target	case,
		integer	order,
		type(time_based_controller_t), intent(in)	preprocess_controller,
		type(time_based_controller_t), intent(in)	compute_controller,
		type(time_based_controller_t), intent(in)	output_controller
	)

inherited

Parameters

case	The simulation case object.
order	The execution oder priority of the simcomp.
preprocess_controller	The controller for running preprocessing.
compute_controller	The controller for running compute.
output_controller	The controller for producing output.

Definition at line 67 of file simulation_component.f90.

◆ init_base_from_controllers()

procedure, pass(this) simulation_component::simulation_component_t::init_base_from_controllers	(	class(simulation_component_t), intent(inout)	this,
		class(case_t), intent(inout), target	case,
		integer	order,
		type(time_based_controller_t), intent(in)	preprocess_controller,
		type(time_based_controller_t), intent(in)	compute_controller,
		type(time_based_controller_t), intent(in)	output_controller
	)

inherited

Parameters

case	The simulation case object.
order	The execution oder priority of the simcomp.
preprocess_controller	The controller for running preprocessing.
compute_controller	The controller for running compute.
output_controller	The controller for producing output.

Definition at line 73 of file simulation_component.f90.

◆ init_base_from_controllers_properties()

procedure, pass(this) simulation_component::simulation_component_t::init_base_from_controllers_properties	(	class(simulation_component_t), intent(inout)	this,
		class(case_t), intent(inout), target	case,
		integer	order,
		character(len=*), intent(in)	preprocess_control,
		real(kind=rp), intent(in)	preprocess_value,
		character(len=*), intent(in)	compute_control,
		real(kind=rp), intent(in)	compute_value,
		character(len=*), intent(in)	output_control,
		real(kind=rp), intent(in)	output_value
	)

inherited

Parameters

case	The simulation case object.
order	The execution oder priority of the simcomp.
preprocess_controller	Control mode for preprocessing.
preprocess_value	Value parameter for preprocessing.
compute_controller	Control mode for computing.
compute_value	Value parameter for computing.
output_controller	Control mode for output.
output_value	Value parameter for output.

Definition at line 78 of file simulation_component.f90.

◆ init_common()

procedure, pass(this), private boundary_flux::boundary_flux_t::init_common	(	class(boundary_flux_t), intent(inout)	this,
		character(len=*), intent(in)	name,
		type(coef_t), intent(inout), target	coef,
		integer, dimension(:), intent(in)	zone_indices,
		character(len=*), dimension(:), intent(in)	field_names,
		logical, intent(in)	log,
		character(len=*), intent(in), optional	output_filename
	)

private

Parameters

name	Unique simcomp name.
coef	SEM coefficients.
zone_indices	Labelled zones to include.
field_names	Names of the registered vector component fields.
log	Whether to emit tabular log output.
output_filename	Optional CSV output filename.

Definition at line 110 of file boundary_flux.f90.

◆ init_from_components() [1/2]

generic boundary_flux::boundary_flux_t::init_from_components	(	class(boundary_flux_t), intent(inout)	this,
		character(len=*), intent(in)	name,
		class(case_t), intent(inout), target	case,
		integer, intent(in)	order,
		character(len=*), intent(in)	preprocess_control,
		real(kind=rp), intent(in)	preprocess_value,
		character(len=*), intent(in)	compute_control,
		real(kind=rp), intent(in)	compute_value,
		character(len=*), intent(in)	output_control,
		real(kind=rp), intent(in)	output_value,
		integer, dimension(:), intent(in)	zone_indices,
		character(len=*), dimension(:), intent(in)	field_names,
		logical, intent(in), optional	log,
		character(len=*), intent(in), optional	output_filename
	)

Parameters

name	Unique simcomp name.
case	Simulation case owning the simcomp.
order	Execution priority.
preprocess_control	Control mode for preprocessing.
preprocess_value	Control value for preprocessing.
compute_control	Control mode for computation.
compute_value	Control value for computation.
output_control	Control mode for output.
output_value	Control value for output.
zone_indices	Labelled zones to include.
field_names	Names of the registered vector component fields.
log	Optional flag controlling log output.
output_filename	Optional CSV output filename.

Definition at line 101 of file boundary_flux.f90.

◆ init_from_components() [2/2]

generic boundary_flux::boundary_flux_t::init_from_components	(	class(boundary_flux_t), intent(inout)	this,
		character(len=*), intent(in)	name,
		class(case_t), intent(inout), target	case,
		integer, intent(in)	order,
		type(time_based_controller_t), intent(in)	preprocess_controller,
		type(time_based_controller_t), intent(in)	compute_controller,
		type(time_based_controller_t), intent(in)	output_controller,
		integer, dimension(:), intent(in)	zone_indices,
		character(len=*), dimension(:), intent(in)	field_names,
		logical, intent(in), optional	log,
		character(len=*), intent(in), optional	output_filename
	)

Parameters

name	Unique simcomp name.
case	Simulation case owning the simcomp.
order	Execution priority.
preprocess_controller	Controller for preprocessing.
compute_controller	Controller for computation.
output_controller	Controller for output.
zone_indices	Labelled zones to include.
field_names	Names of the registered vector component fields.
log	Optional flag controlling log output.
output_filename	Optional CSV output filename.

Definition at line 101 of file boundary_flux.f90.

◆ init_from_controllers()

procedure, pass(this) boundary_flux::boundary_flux_t::init_from_controllers	(	class(boundary_flux_t), intent(inout)	this,
		character(len=*), intent(in)	name,
		class(case_t), intent(inout), target	case,
		integer, intent(in)	order,
		type(time_based_controller_t), intent(in)	preprocess_controller,
		type(time_based_controller_t), intent(in)	compute_controller,
		type(time_based_controller_t), intent(in)	output_controller,
		integer, dimension(:), intent(in)	zone_indices,
		character(len=*), dimension(:), intent(in)	field_names,
		logical, intent(in), optional	log,
		character(len=*), intent(in), optional	output_filename
	)

Parameters

name	Unique simcomp name.
case	Simulation case owning the simcomp.
order	Execution priority.
preprocess_controller	Controller for preprocessing.
compute_controller	Controller for computation.
output_controller	Controller for output.
zone_indices	Labelled zones to include.
field_names	Names of the registered vector component fields.
log	Optional flag controlling log output.
output_filename	Optional CSV output filename.

Definition at line 104 of file boundary_flux.f90.

◆ init_from_controllers_properties()

procedure, pass(this) boundary_flux::boundary_flux_t::init_from_controllers_properties	(	class(boundary_flux_t), intent(inout)	this,
		character(len=*), intent(in)	name,
		class(case_t), intent(inout), target	case,
		integer, intent(in)	order,
		character(len=*), intent(in)	preprocess_control,
		real(kind=rp), intent(in)	preprocess_value,
		character(len=*), intent(in)	compute_control,
		real(kind=rp), intent(in)	compute_value,
		character(len=*), intent(in)	output_control,
		real(kind=rp), intent(in)	output_value,
		integer, dimension(:), intent(in)	zone_indices,
		character(len=*), dimension(:), intent(in)	field_names,
		logical, intent(in), optional	log,
		character(len=*), intent(in), optional	output_filename
	)

Parameters

name	Unique simcomp name.
case	Simulation case owning the simcomp.
order	Execution priority.
preprocess_control	Control mode for preprocessing.
preprocess_value	Control value for preprocessing.
compute_control	Control mode for computation.
compute_value	Control value for computation.
output_control	Control mode for output.
output_value	Control value for output.
zone_indices	Labelled zones to include.
field_names	Names of the registered vector component fields.
log	Optional flag controlling log output.
output_filename	Optional CSV output filename.

Definition at line 107 of file boundary_flux.f90.

◆ parse_json()

procedure, pass(this) simulation_component::simulation_component_t::parse_json	(	class(simulation_component_t), intent(inout)	this,
		type(json_file), intent(inout)	json,
		type(json_file), intent(inout)	case_params,
		character(len=:), intent(inout), allocatable	preprocess_control,
		real(kind=rp), intent(out)	preprocess_value,
		character(len=:), intent(inout), allocatable	compute_control,
		real(kind=rp), intent(out)	compute_value,
		character(len=:), intent(inout), allocatable	output_control,
		real(kind=rp), intent(out)	output_value
	)

inherited

Parameters

json	The JSON dictionary of the simcomp.
case_params	The entire case configuration JSON.
preprocess_value	Control mode for preprocessing.
preprocess_controller	Value parameter for preprocessing.
compute_controller	Control mode for computing.
compute_controller	Value parameter for computing.
output_controller	Control mode for output.
output_controller	Value parameter for output.

Definition at line 103 of file simulation_component.f90.

◆ preprocess()

procedure, pass(this) simulation_component::simulation_component_t::preprocess	(	class(simulation_component_t), intent(inout)	this,
		type(time_state_t), intent(in)	time
	)

inherited

Parameters

time	The current time.

Definition at line 87 of file simulation_component.f90.

◆ preprocess_()

procedure, pass(this) simulation_component::simulation_component_t::preprocess_	(	class(simulation_component_t), intent(inout)	this,
		type(time_state_t), intent(in)	time
	)

inherited

Parameters

time	The current time.

Definition at line 97 of file simulation_component.f90.

◆ restart()

procedure, pass(this) simulation_component::simulation_component_t::restart	(	class(simulation_component_t), intent(inout)	this,
		type(time_state_t), intent(in)	time
	)

inherited

Parameters

time	The current time.

Definition at line 84 of file simulation_component.f90.

◆ restart_()

procedure, pass(this) simulation_component::simulation_component_t::restart_	(	class(simulation_component_t), intent(inout)	this,
		type(time_state_t), intent(in)	time
	)

inherited

Parameters

time	The current time.

Definition at line 101 of file simulation_component.f90.

Member Data Documentation

◆ bc

type(neumann_t) boundary_flux::boundary_flux_t::bc

Definition at line 70 of file boundary_flux.f90.

◆ case

type(case_t), pointer simulation_component::simulation_component_t::case

inherited

Definition at line 52 of file simulation_component.f90.

◆ coef

type(coef_t), pointer boundary_flux::boundary_flux_t::coef => null()

Definition at line 68 of file boundary_flux.f90.

◆ compute_controller

type(time_based_controller_t) simulation_component::simulation_component_t::compute_controller

inherited

Definition at line 56 of file simulation_component.f90.

◆ csv_output

type(file_t) boundary_flux::boundary_flux_t::csv_output

Definition at line 80 of file boundary_flux.f90.

◆ csv_output_enabled

logical boundary_flux::boundary_flux_t::csv_output_enabled = .false.

Definition at line 78 of file boundary_flux.f90.

◆ csv_row

type(vector_t) boundary_flux::boundary_flux_t::csv_row

Definition at line 82 of file boundary_flux.f90.

◆ field_names

character(len=80), dimension(:), allocatable boundary_flux::boundary_flux_t::field_names

Definition at line 74 of file boundary_flux.f90.

◆ flux

real(kind=rp) boundary_flux::boundary_flux_t::flux = 0.0_rp

Definition at line 96 of file boundary_flux.f90.

◆ log

logical boundary_flux::boundary_flux_t::log = .true.

Definition at line 76 of file boundary_flux.f90.

◆ n1

type(vector_t) boundary_flux::boundary_flux_t::n1

Definition at line 84 of file boundary_flux.f90.

◆ n2

type(vector_t) boundary_flux::boundary_flux_t::n2

Definition at line 86 of file boundary_flux.f90.

◆ n3

type(vector_t) boundary_flux::boundary_flux_t::n3

Definition at line 88 of file boundary_flux.f90.

◆ name

character(:), allocatable simulation_component::simulation_component_t::name

inherited

Definition at line 62 of file simulation_component.f90.

◆ order

integer simulation_component::simulation_component_t::order

inherited

Definition at line 60 of file simulation_component.f90.

◆ output_controller

type(time_based_controller_t) simulation_component::simulation_component_t::output_controller

inherited

Definition at line 58 of file simulation_component.f90.

◆ preprocess_controller

type(time_based_controller_t) simulation_component::simulation_component_t::preprocess_controller

inherited

Definition at line 54 of file simulation_component.f90.

◆ surface_u

type(vector_t) boundary_flux::boundary_flux_t::surface_u

Definition at line 90 of file boundary_flux.f90.

◆ surface_v

type(vector_t) boundary_flux::boundary_flux_t::surface_v

Definition at line 92 of file boundary_flux.f90.

◆ surface_w

type(vector_t) boundary_flux::boundary_flux_t::surface_w

Definition at line 94 of file boundary_flux.f90.

◆ u

type(field_t), pointer boundary_flux::boundary_flux_t::u => null()

Definition at line 62 of file boundary_flux.f90.

◆ v

type(field_t), pointer boundary_flux::boundary_flux_t::v => null()

Definition at line 64 of file boundary_flux.f90.

◆ w

type(field_t), pointer boundary_flux::boundary_flux_t::w => null()

Definition at line 66 of file boundary_flux.f90.

◆ zone_indices

integer, dimension(:), allocatable boundary_flux::boundary_flux_t::zone_indices

Definition at line 72 of file boundary_flux.f90.

The documentation for this type was generated from the following file:

/home/runner/work/neko/neko/src/simulation_components/boundary_flux.f90

Public Member Functions

Public Attributes

Private Member Functions

Detailed Description

Member Function/Subroutine Documentation

◆ compute()

◆ compute_() [1/2]

◆ compute_() [2/2]

◆ free() [1/2]

◆ free() [2/2]

◆ free_base()

◆ init() [1/2]

◆ init() [2/2]

◆ init_base()

◆ init_base_from_components() [1/2]

◆ init_base_from_components() [2/2]

◆ init_base_from_controllers()

◆ init_base_from_controllers_properties()

◆ init_common()

◆ init_from_components() [1/2]

◆ init_from_components() [2/2]

◆ init_from_controllers()

◆ init_from_controllers_properties()

◆ parse_json()

◆ preprocess()

◆ preprocess_()

◆ restart()

◆ restart_()

Member Data Documentation

◆ bc

◆ case

◆ coef

◆ compute_controller

◆ csv_output

◆ csv_output_enabled

◆ csv_row

◆ field_names

◆ flux

◆ log

◆ n1

◆ n2

◆ n3

◆ name

◆ order

◆ output_controller

◆ preprocess_controller

◆ surface_u

◆ surface_v

◆ surface_w

◆ u

◆ v

◆ w

◆ zone_indices
