A Neumann boundary condition. Sets the flux of the field to the chosen values. More...

Inheritance diagram for neumann::neumann_t:

Collaboration diagram for neumann::neumann_t:

[legend]

Public Member Functions
procedure, pass(this)	apply_scalar (this, x, n, time, strong)
	Boundary condition apply for a generic Neumann condition to a vector x.

procedure, pass(this)	apply_vector (this, x, y, z, n, time, strong)
	Boundary condition apply for a generic Neumann condition to vectors x, y and z.

procedure, pass(this)	apply_scalar_dev (this, x_d, time, strong, strm)
	Boundary condition apply for a generic Neumann condition to a vector x (device version)

procedure, pass(this)	apply_vector_dev (this, x_d, y_d, z_d, time, strong, strm)
	Boundary condition apply for a generic Neumann condition to vectors x, y and z (device version)

procedure, pass(this)	init (this, coef, json)
	Constructor.

procedure, pass(this)	neumann_init_from_components_array (this, coef, flux)
	Constructor from components, one flux value per component.

procedure, pass(this)	neumann_init_from_components_single (this, coef, flux)
	Constructor from components, single flux for the single-component case.

generic	init_from_components (this, coef, flux)
	Constructor from components, one flux value per component.

generic	init_from_components (this, coef, flux)
	Constructor from components, single flux for the single-component case.

procedure, pass(this)	set_flux_scalar (this, flux, comp)
	Set the flux using a scalar.

procedure, pass(this)	set_flux_array (this, flux, comp)
	Set the flux using an array.

generic	set_flux (this, flux, comp)
	Generic interface for setting the flux.

generic	set_flux (this, flux, comp)
	Generic interface for setting the flux.

procedure, pass(this)	free (this)
	Destructor.

procedure, pass(this)	finalize (this, only_facets)
	Finalize.

procedure, pass(this)	init_base (this, coef)
	Constructor.

procedure, pass(this)	free_base (this)
	Destructor.

procedure, pass(this)	mark_facet (this, facet, el)
	Mark a facet on an element as part of the boundary condition.

procedure, pass(this)	mark_facets (this, facet_list)
	Mark all facets from a (facet, element) tuple list.

procedure, pass(this)	mark_zone (this, bc_zone)
	Mark all facets from a zone.

procedure, pass(this)	finalize_base (this, only_facets)
	Finalize the construction of the bc by populating the msk and facet arrays.

procedure, pass(this)	apply_scalar_generic (this, x, time, strong, strm)
	Apply the boundary condition to a scalar field. Dispatches to the CPU or the device version.

procedure, pass(this)	apply_vector_generic (this, x, y, z, time, strong, strm)
	Apply the boundary condition to a vector field. Dispatches to the CPU or the device version.

procedure, pass(this)	debug_mask_ (this, file_name)
	Write a field showing the mask of the bcs.

procedure(bc_apply_scalar), deferred, pass	apply_scalar (this, x, n, time, strong)
	Apply the boundary condition to a scalar field on the CPU.

procedure(bc_apply_vector), deferred, pass	apply_vector (this, x, y, z, n, time, strong)
	Apply the boundary condition to a vector field on the CPU.

procedure(bc_apply_scalar_dev), deferred, pass	apply_scalar_dev (this, x_d, time, strong, strm)
	Device version of apply_scalar on the device.

procedure(bc_apply_vector_dev), deferred, pass	apply_vector_dev (this, x_d, y_d, z_d, time, strong, strm)
	Device version of apply_vector on the device.

procedure(bc_destructor), deferred, pass	free (this)
	Deferred destructor.

procedure(bc_constructor), deferred, pass	init (this, coef, json)
	Deferred constructor.

procedure(bc_finalize), deferred, pass	finalize (this, only_facets)
	Deferred finalizer.

Public Attributes
type(vector_t), dimension(:), allocatable	flux
	The flux values at the boundary. Each vector in the array corresponds to a component of the flux.

logical	uniform_0 = .false.
	Flag for whether we have a homogeneous Neumann condition, i.e. "do nothing".

integer, dimension(:), allocatable	msk
	The linear index of each node in each boundary facet.

integer, dimension(:), allocatable	facet
	A list of facet ids (1 to 6), one for each element in msk.

type(dofmap_t), pointer	dof => null()
	Map of degrees of freedom.

type(coef_t), pointer	coef => null()
	SEM coefficients.

type(mesh_t), pointer	msh => null()
	The mesh.

type(space_t), pointer	xh => null()
	The function space.

type(stack_i4t2_t)	marked_facet
	Index tuples (facet, element) marked as part of the boundary condition.

type(c_ptr)	msk_d = C_NULL_PTR
	Device pointer for msk.

type(c_ptr)	facet_d = C_NULL_PTR
	Device pointer for facet.

logical	strong = .true.
	Wether the bc is strongly enforced. Essentially valid for all Dirichlet types of bcs. These need to be masked out for solvers etc, so that values are not affected. Mixed bcs are, by convention, weak.

logical	updated = .false.
	Indicates wether the bc has been updated, for those BCs that need additional computations.

Private Attributes
real(kind=rp), dimension(:), allocatable, private	init_flux_
	An initial flux value set at construction. A constant for each component. Copied to `flux` at finalization. This is needed because we do not know the size of the boundary at construction time, only at finalization.

Detailed Description

The condition is imposed weakly by adding an appropriate source term to the right-hand-side. At construction time, we check if the prescribed flux is zero and if so, the condition just does nothing. Setting the flux using the set_flux routine, automatically removes this assumption.

Definition at line 60 of file neumann.f90.

Member Function/Subroutine Documentation

◆ apply_scalar() [1/2]

procedure(bc_apply_scalar), deferred, pass bc::bc_t::apply_scalar	(	class(bc_t), intent(inout)	this,
		real(kind=rp), dimension(n), intent(inout)	x,
		integer, intent(in)	n,
		type(time_state_t), intent(in), optional	time,
		logical, intent(in), optional	strong
	)

pure virtualinherited

Definition at line 112 of file bc.f90.

◆ apply_scalar() [2/2]

procedure, pass(this) neumann::neumann_t::apply_scalar	(	class(neumann_t), intent(inout)	this,
		real(kind=rp), dimension(n), intent(inout)	x,
		integer, intent(in)	n,
		type(time_state_t), intent(in), optional	time,
		logical, intent(in), optional	strong
	)

Definition at line 73 of file neumann.f90.

◆ apply_scalar_dev() [1/2]

procedure(bc_apply_scalar_dev), deferred, pass bc::bc_t::apply_scalar_dev	(	class(bc_t), intent(inout), target	this,
		type(c_ptr), intent(inout)	x_d,
		type(time_state_t), intent(in), optional	time,
		logical, intent(in), optional	strong,
		type(c_ptr), intent(inout)	strm
	)

pure virtualinherited

Definition at line 116 of file bc.f90.

◆ apply_scalar_dev() [2/2]

procedure, pass(this) neumann::neumann_t::apply_scalar_dev	(	class(neumann_t), intent(inout), target	this,
		type(c_ptr), intent(inout)	x_d,
		type(time_state_t), intent(in), optional	time,
		logical, intent(in), optional	strong,
		type(c_ptr), intent(inout)	strm
	)

Definition at line 75 of file neumann.f90.

◆ apply_scalar_generic()

procedure, pass(this) bc::bc_t::apply_scalar_generic	(	class(bc_t), intent(inout)	this,
		type(field_t), intent(inout)	x,
		type(time_state_t), intent(in), optional	time,
		logical, intent(in), optional	strong,
		type(c_ptr), intent(inout), optional	strm
	)

inherited

Parameters

x	The x comp of the field for which to apply the bc.
time	Current time state.
strong	Whether we are setting a strong or a weak bc.
strm	Device stream

Definition at line 105 of file bc.f90.

◆ apply_vector() [1/2]

procedure(bc_apply_vector), deferred, pass bc::bc_t::apply_vector	(	class(bc_t), intent(inout)	this,
		real(kind=rp), dimension(n), intent(inout)	x,
		real(kind=rp), dimension(n), intent(inout)	y,
		real(kind=rp), dimension(n), intent(inout)	z,
		integer, intent(in)	n,
		type(time_state_t), intent(in), optional	time,
		logical, intent(in), optional	strong
	)

pure virtualinherited

Definition at line 114 of file bc.f90.

◆ apply_vector() [2/2]

procedure, pass(this) neumann::neumann_t::apply_vector	(	class(neumann_t), intent(inout)	this,
		real(kind=rp), dimension(n), intent(inout)	x,
		real(kind=rp), dimension(n), intent(inout)	y,
		real(kind=rp), dimension(n), intent(inout)	z,
		integer, intent(in)	n,
		type(time_state_t), intent(in), optional	time,
		logical, intent(in), optional	strong
	)

Definition at line 74 of file neumann.f90.

◆ apply_vector_dev() [1/2]

procedure(bc_apply_vector_dev), deferred, pass bc::bc_t::apply_vector_dev	(	class(bc_t), intent(inout), target	this,
		type(c_ptr), intent(inout)	x_d,
		type(c_ptr), intent(inout)	y_d,
		type(c_ptr), intent(inout)	z_d,
		type(time_state_t), intent(in), optional	time,
		logical, intent(in), optional	strong,
		type(c_ptr), intent(inout)	strm
	)

pure virtualinherited

Definition at line 118 of file bc.f90.

◆ apply_vector_dev() [2/2]

procedure, pass(this) neumann::neumann_t::apply_vector_dev	(	class(neumann_t), intent(inout), target	this,
		type(c_ptr), intent(inout)	x_d,
		type(c_ptr), intent(inout)	y_d,
		type(c_ptr), intent(inout)	z_d,
		type(time_state_t), intent(in), optional	time,
		logical, intent(in), optional	strong,
		type(c_ptr), intent(inout)	strm
	)

Definition at line 76 of file neumann.f90.

◆ apply_vector_generic()

procedure, pass(this) bc::bc_t::apply_vector_generic	(	class(bc_t), intent(inout)	this,
		type(field_t), intent(inout)	x,
		type(field_t), intent(inout)	y,
		type(field_t), intent(inout)	z,
		type(time_state_t), intent(in), optional	time,
		logical, intent(in), optional	strong,
		type(c_ptr), intent(inout), optional	strm
	)

inherited

Parameters

x	The x comp of the field for which to apply the bc.
y	The y comp of the field for which to apply the bc.
z	The z comp of the field for which to apply the bc.
time	Current time state.
strong	Whether we are setting a strong or a weak bc.
Device	stream

Definition at line 108 of file bc.f90.

◆ debug_mask_()

procedure, pass(this) bc::bc_t::debug_mask_	(	class(bc_t), intent(inout)	this,
		character(len=*), intent(in)	file_name
	)

inherited

The mask will be marked with 1.

Parameters

file_name The name of the fld file.

Definition at line 110 of file bc.f90.

◆ finalize() [1/2]

procedure(bc_finalize), deferred, pass bc::bc_t::finalize	(	class(bc_t), intent(inout), target	this,
		logical, intent(in), optional	only_facets
	)

pure virtualinherited

Definition at line 124 of file bc.f90.

◆ finalize() [2/2]

procedure, pass(this) neumann::neumann_t::finalize	(	class(neumann_t), intent(inout), target	this,
		logical, intent(in), optional	only_facets
	)

Definition at line 95 of file neumann.f90.

◆ finalize_base()

procedure, pass(this) bc::bc_t::finalize_base	(	class(bc_t), intent(inout), target	this,
		logical, intent(in), optional	only_facets
	)

inherited

Parameters

only_facets,if the bc is only to be applied on facets. Relevant for bcs where the normal direction is important and where and shared dofs should not be included.

This will linearize the marked facet's indicies in the msk array.

Definition at line 101 of file bc.f90.

◆ free() [1/2]

procedure(bc_destructor), deferred, pass bc::bc_t::free ( class(bc_t), intent(inout), target this )

pure virtualinherited

Definition at line 120 of file bc.f90.

◆ free() [2/2]

procedure, pass(this) neumann::neumann_t::free ( class(neumann_t), intent(inout), target this )

Definition at line 93 of file neumann.f90.

◆ free_base()

procedure, pass(this) bc::bc_t::free_base ( class(bc_t), intent(inout) this )

inherited

Definition at line 92 of file bc.f90.

◆ init() [1/2]

procedure(bc_constructor), deferred, pass bc::bc_t::init	(	class(bc_t), intent(inout), target	this,
		type(coef_t), intent(in), target	coef,
		type(json_file), intent(inout)	json
	)

pure virtualinherited

Definition at line 122 of file bc.f90.

◆ init() [2/2]

procedure, pass(this) neumann::neumann_t::init	(	class(neumann_t), intent(inout), target	this,
		type(coef_t), intent(in), target	coef,
		type(json_file), intent(inout)	json
	)

Parameters

[in]	coef	The SEM coefficients.
[in,out]	json	The JSON object configuring the boundary condition.

Definition at line 78 of file neumann.f90.

◆ init_base()

procedure, pass(this) bc::bc_t::init_base	(	class(bc_t), intent(inout)	this,
		type(coef_t), intent(in), target	coef
	)

inherited

Parameters

dof	Map of degrees of freedom.

Definition at line 90 of file bc.f90.

◆ init_from_components() [1/2]

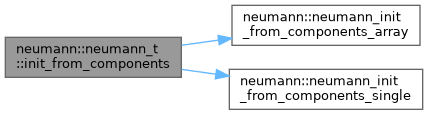

generic neumann::neumann_t::init_from_components	(	class(neumann_t), intent(inout), target	this,
		type(coef_t), intent(in)	coef,
		real(kind=rp), intent(in)	flux
	)

Parameters

[in]	coef	The SEM coefficients.
[in]	flux	The value of the flux at the boundary.

Definition at line 83 of file neumann.f90.

◆ init_from_components() [2/2]

generic neumann::neumann_t::init_from_components	(	class(neumann_t), intent(inout), target	this,
		type(coef_t), intent(in)	coef,
		real(kind=rp), dimension(3), intent(in)	flux
	)

Parameters

[in]	coef	The SEM coefficients.
[in]	flux	The value of the flux at the boundary.

Definition at line 83 of file neumann.f90.

Here is the call graph for this function:

◆ mark_facet()

procedure, pass(this) bc::bc_t::mark_facet	(	class(bc_t), intent(inout)	this,
		integer, intent(in)	facet,
		integer, intent(in)	el
	)

inherited

Parameters

facet	The index of the facet.
el	The index of the element.

Definition at line 94 of file bc.f90.

◆ mark_facets()

procedure, pass(this) bc::bc_t::mark_facets	(	class(bc_t), intent(inout)	this,
		type(stack_i4t2_t), intent(inout)	facet_list
	)

inherited

Parameters

facet_list The list of tuples.

Definition at line 96 of file bc.f90.

◆ mark_zone()

procedure, pass(this) bc::bc_t::mark_zone	(	class(bc_t), intent(inout)	this,
		class(facet_zone_t), intent(in)	bc_zone
	)

inherited

Parameters

bc_zone Boundary zone to be marked.

Definition at line 98 of file bc.f90.

◆ neumann_init_from_components_array()

procedure, pass(this) neumann::neumann_t::neumann_init_from_components_array	(	class(neumann_t), intent(inout), target	this,
		type(coef_t), intent(in)	coef,
		real(kind=rp), dimension(3), intent(in)	flux
	)

Parameters

[in]	coef	The SEM coefficients.
[in]	flux	The value of the flux at the boundary.

Definition at line 80 of file neumann.f90.

◆ neumann_init_from_components_single()

procedure, pass(this) neumann::neumann_t::neumann_init_from_components_single	(	class(neumann_t), intent(inout), target	this,
		type(coef_t), intent(in)	coef,
		real(kind=rp), intent(in)	flux
	)

Parameters

[in]	coef	The SEM coefficients.
[in]	flux	The value of the flux at the boundary.

Definition at line 82 of file neumann.f90.

◆ set_flux() [1/2]

generic neumann::neumann_t::set_flux	(	class(neumann_t), intent(inout)	this,
		real(kind=rp), intent(in)	flux,
		integer, intent(in)	comp
	)

Parameters

flux	The desired flux.
comp	The component to set.

Definition at line 91 of file neumann.f90.

◆ set_flux() [2/2]

generic neumann::neumann_t::set_flux	(	class(neumann_t), intent(inout)	this,
		type(vector_t), intent(in)	flux,
		integer, intent(in)	comp
	)

Parameters

flux	The desired flux.
comp	The component to set.

Definition at line 91 of file neumann.f90.

◆ set_flux_array()

procedure, pass(this) neumann::neumann_t::set_flux_array	(	class(neumann_t), intent(inout)	this,
		type(vector_t), intent(in)	flux,
		integer, intent(in)	comp
	)

Parameters

flux	The desired flux.
comp	The component to set.

Definition at line 89 of file neumann.f90.

◆ set_flux_scalar()

procedure, pass(this) neumann::neumann_t::set_flux_scalar	(	class(neumann_t), intent(inout)	this,
		real(kind=rp), intent(in)	flux,
		integer, intent(in)	comp
	)

Parameters

flux	The desired flux.
comp	The component to set.

Definition at line 87 of file neumann.f90.

Member Data Documentation

◆ coef

type(coef_t), pointer bc::bc_t::coef => null()

inherited

Definition at line 69 of file bc.f90.

◆ dof

type(dofmap_t), pointer bc::bc_t::dof => null()

inherited

Definition at line 67 of file bc.f90.

◆ facet

integer, dimension(:), allocatable bc::bc_t::facet

inherited

Definition at line 65 of file bc.f90.

◆ facet_d

type(c_ptr) bc::bc_t::facet_d = C_NULL_PTR

inherited

Definition at line 79 of file bc.f90.

◆ flux

type(vector_t), dimension(:), allocatable neumann::neumann_t::flux

Definition at line 63 of file neumann.f90.

◆ init_flux_

real(kind=rp), dimension(:), allocatable, private neumann::neumann_t::init_flux_

private

Definition at line 68 of file neumann.f90.

◆ marked_facet

type(stack_i4t2_t) bc::bc_t::marked_facet

inherited

Definition at line 75 of file bc.f90.

◆ msh

type(mesh_t), pointer bc::bc_t::msh => null()

inherited

Definition at line 71 of file bc.f90.

◆ msk

integer, dimension(:), allocatable bc::bc_t::msk

inherited

Definition at line 63 of file bc.f90.

◆ msk_d

type(c_ptr) bc::bc_t::msk_d = C_NULL_PTR

inherited

Definition at line 77 of file bc.f90.

◆ strong

logical bc::bc_t::strong = .true.

inherited

Definition at line 84 of file bc.f90.

◆ uniform_0

logical neumann::neumann_t::uniform_0 = .false.

Definition at line 71 of file neumann.f90.

◆ updated

logical bc::bc_t::updated = .false.

inherited

Definition at line 87 of file bc.f90.

◆ xh

type(space_t), pointer bc::bc_t::xh => null()

inherited

Definition at line 73 of file bc.f90.

The documentation for this type was generated from the following file:

/home/runner/work/neko/neko/src/bc/neumann.f90

Public Member Functions

Public Attributes

Private Attributes

Detailed Description

Member Function/Subroutine Documentation

◆ apply_scalar() [1/2]

◆ apply_scalar() [2/2]

◆ apply_scalar_dev() [1/2]

◆ apply_scalar_dev() [2/2]

◆ apply_scalar_generic()

◆ apply_vector() [1/2]

◆ apply_vector() [2/2]

◆ apply_vector_dev() [1/2]

◆ apply_vector_dev() [2/2]

◆ apply_vector_generic()

◆ debug_mask_()

◆ finalize() [1/2]

◆ finalize() [2/2]

◆ finalize_base()

◆ free() [1/2]

◆ free() [2/2]

◆ free_base()

◆ init() [1/2]

◆ init() [2/2]

◆ init_base()

◆ init_from_components() [1/2]

◆ init_from_components() [2/2]

◆ mark_facet()

◆ mark_facets()

◆ mark_zone()

◆ neumann_init_from_components_array()

◆ neumann_init_from_components_single()

◆ set_flux() [1/2]

◆ set_flux() [2/2]

◆ set_flux_array()

◆ set_flux_scalar()

Member Data Documentation

◆ coef

◆ dof

◆ facet

◆ facet_d

◆ flux

◆ init_flux_

◆ marked_facet

◆ msh

◆ msk

◆ msk_d

◆ strong

◆ uniform_0

◆ updated

◆ xh
