neumann Module Reference

Defines a Neumann boundary condition.

Data Types
type	neumann_t
	A Neumann boundary condition. Sets the flux of the field to the chosen values. More...

Functions/Subroutines
subroutine	neumann_init (this, coef, json)
	Constructor.
subroutine	neumann_init_from_components_array (this, coef, flux)
	Constructor from components, using a flux array for vector components.
subroutine	neumann_init_from_components_single (this, coef, flux)
	Constructor from components, using an signle flux.
subroutine	neumann_apply_scalar (this, x, n, time, strong)
	Boundary condition apply for a generic Neumann condition to a vector x.
subroutine	neumann_apply_vector (this, x, y, z, n, time, strong)
	Boundary condition apply for a generic Neumann condition to vectors x, y and z.
subroutine	neumann_apply_scalar_dev (this, x_d, time, strong, strm)
	Boundary condition apply for a generic Neumann condition to a vector x (device version)
subroutine	neumann_apply_vector_dev (this, x_d, y_d, z_d, time, strong, strm)
	Boundary condition apply for a generic Neumann condition to vectors x, y and z (device version)
subroutine	neumann_free (this)
	Destructor.
subroutine	neumann_finalize (this, only_facets)
	Finalize by setting the flux.
subroutine	neumann_set_flux_scalar (this, flux, comp)
	Set the flux using a scalar.
subroutine	neumann_set_flux_array (this, flux, comp)
	Set a flux component using a vector_t of values.

Function/Subroutine Documentation

neumann_apply_scalar()

subroutine neumann::neumann_apply_scalar ( class(neumann_t), intent(inout)  this, real(kind=rp), dimension(n), intent(inout)  x, integer, intent(in)  n, type(time_state_t), intent(in), optional  time, logical, intent(in), optional  strong  )

private

Definition at line 165 of file neumann.f90.

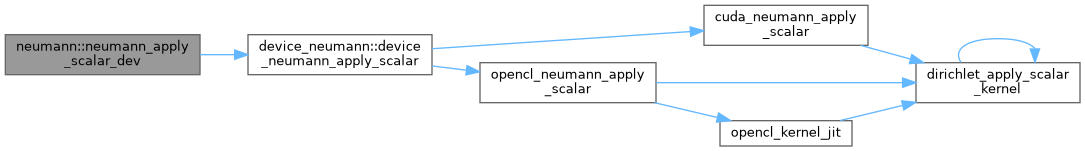

Here is the call graph for this function:

neumann_apply_scalar_dev()

subroutine neumann::neumann_apply_scalar_dev ( class(neumann_t), intent(inout), target  this, type(c_ptr), intent(inout)  x_d, type(time_state_t), intent(in), optional  time, logical, intent(in), optional  strong, type(c_ptr), intent(inout)  strm  )

private

Definition at line 261 of file neumann.f90.

Here is the call graph for this function:

neumann_apply_vector()

subroutine neumann::neumann_apply_vector ( class(neumann_t), intent(inout)  this, real(kind=rp), dimension(n), intent(inout)  x, real(kind=rp), dimension(n), intent(inout)  y, real(kind=rp), dimension(n), intent(inout)  z, integer, intent(in)  n, type(time_state_t), intent(in), optional  time, logical, intent(in), optional  strong  )

private

Definition at line 206 of file neumann.f90.

Here is the call graph for this function:

neumann_apply_vector_dev()

subroutine neumann::neumann_apply_vector_dev ( class(neumann_t), intent(inout), target  this, type(c_ptr), intent(inout)  x_d, type(c_ptr), intent(inout)  y_d, type(c_ptr), intent(inout)  z_d, type(time_state_t), intent(in), optional  time, logical, intent(in), optional  strong, type(c_ptr), intent(inout)  strm  )

private

Definition at line 285 of file neumann.f90.

Here is the call graph for this function:

neumann_finalize()

subroutine neumann::neumann_finalize ( class(neumann_t), intent(inout), target  this, logical, intent(in), optional  only_facets  )

private

Definition at line 322 of file neumann.f90.

neumann_free()

subroutine neumann::neumann_free ( class(neumann_t), intent(inout), target  this )

private

Definition at line 314 of file neumann.f90.

neumann_init()

subroutine neumann::neumann_init	(	class(neumann_t), intent(inout), target	this,
		type(coef_t), intent(in), target	coef,
		type(json_file), intent(inout)	json
	)

Parameters

[in]	coef	The SEM coefficients.
[in,out]	json	The JSON object configuring the boundary condition.

Definition at line 103 of file neumann.f90.

neumann_init_from_components_array()

subroutine neumann::neumann_init_from_components_array ( class(neumann_t), intent(inout), target  this, type(coef_t), intent(in)  coef, real(kind=rp), dimension(3), intent(in)  flux  )

private

Parameters

[in]	coef	The SEM coefficients.
[in]	flux	The value of the flux at the boundary.

Definition at line 135 of file neumann.f90.

Here is the caller graph for this function:

neumann_init_from_components_single()

subroutine neumann::neumann_init_from_components_single ( class(neumann_t), intent(inout), target  this, type(coef_t), intent(in)  coef, real(kind=rp), intent(in)  flux  )

private

Parameters

[in]	coef	The SEM coefficients.
[in]	flux	The value of the flux at the boundary.

Definition at line 152 of file neumann.f90.

Here is the caller graph for this function:

neumann_set_flux_array()

subroutine neumann::neumann_set_flux_array ( class(neumann_t), intent(inout)  this, type(vector_t), intent(in)  flux, integer, intent(in)  comp  )

private

Parameters

flux	The desired flux.
comp	The component to set.

Definition at line 371 of file neumann.f90.

neumann_set_flux_scalar()

subroutine neumann::neumann_set_flux_scalar ( class(neumann_t), intent(inout)  this, real(kind=rp), intent(in)  flux, integer, intent(in)  comp  )

private

Parameters

flux	The desired flux.
comp	The component to set.

Definition at line 351 of file neumann.f90.
