Neko  0.9.99
A portable framework for high-order spectral element flow simulations
user_intf Module Reference

Interfaces for user interaction with NEKO.

Data Types

interface  useric
 Abstract interface for user defined initial conditions. More...

interface  useric_scalar
 Abstract interface for user defined scalar initial conditions. More...

interface  user_initialize_modules
 Abstract interface for initilialization of modules. More...

interface  user_simcomp_init
 Abstract interface for adding user defined simulation components. More...

interface  usermsh
 Abstract interface for user defined mesh deformation functions. More...

interface  usercheck
 Abstract interface for user defined check functions. More...

interface  user_final_modules
 Abstract interface for finalizating user variables. More...

interface  user_material_properties
 Abstract interface for setting material properties. More...

type  user_t


Functions/Subroutines

subroutine user_intf_init (u)
 User interface initialization. More...

subroutine dummy_user_ic (u, v, w, p, params)
 Dummy user initial condition. More...

subroutine dummy_user_ic_scalar (s, params)
 Dummy user initial condition for scalar field. More...

subroutine dummy_user_f_vector (f, t)
 Dummy user (fluid) forcing. More...

subroutine dummy_user_f (u, v, w, j, k, l, e, t)
 Dummy user (fluid) forcing. More...

subroutine dummy_user_scalar_f_vector (f, t)
 Dummy user (scalar) forcing. More...

subroutine dummy_scalar_user_f (s, j, k, l, e, t)
 Dummy user (scalar) forcing. More...

subroutine dummy_scalar_user_bc (s, x, y, z, nx, ny, nz, ix, iy, iz, ie, t, tstep)
 Dummy user boundary condition for scalar. More...

subroutine dummy_user_mesh_setup (msh)
 Dummy user mesh apply. More...

subroutine dummy_user_check (t, tstep, u, v, w, p, coef, params)
 Dummy user check. More...

subroutine dummy_user_init_no_modules (t, u, v, w, p, coef, params)

subroutine dummy_user_init_no_simcomp (params)

subroutine dummy_user_final_no_modules (t, params)

subroutine dirichlet_do_nothing (dirichlet_field_list, dirichlet_bc_list, coef, t, tstep, which_solver)

subroutine, public dummy_user_material_properties (t, tstep, rho, mu, cp, lambda, params)

type(json_file) function, public simulation_component_user_settings (name, params)
 JSON extraction helper function for simulation components. More...


Function/Subroutine Documentation

◆ dirichlet_do_nothing()

subroutine user_intf::dirichlet_do_nothing ( type(field_list_t), intent(inout)  dirichlet_field_list,
type(bc_list_t), intent(inout)  dirichlet_bc_list,
type(coef_t), intent(inout)  coef,
real(kind=rp), intent(in)  t,
integer, intent(in)  tstep,
character(len=*), intent(in)  which_solver
)
private

Definition at line 429 of file user_intf.f90.

Here is the caller graph for this function:

◆ dummy_scalar_user_bc()

subroutine user_intf::dummy_scalar_user_bc ( real(kind=rp), intent(inout)  s,
real(kind=rp), intent(in)  x,
real(kind=rp), intent(in)  y,
real(kind=rp), intent(in)  z,
real(kind=rp), intent(in)  nx,
real(kind=rp), intent(in)  ny,
real(kind=rp), intent(in)  nz,
integer, intent(in)  ix,
integer, intent(in)  iy,
integer, intent(in)  iz,
integer, intent(in)  ie,
real(kind=rp), intent(in)  t,
integer, intent(in)  tstep
)
private

Definition at line 376 of file user_intf.f90.

Here is the call graph for this function:
Here is the caller graph for this function:

◆ dummy_scalar_user_f()

subroutine user_intf::dummy_scalar_user_f ( real(kind=rp), intent(inout)  s,
integer, intent(in)  j,
integer, intent(in)  k,
integer, intent(in)  l,
integer, intent(in)  e,
real(kind=rp), intent(in)  t
)
private

Definition at line 365 of file user_intf.f90.

Here is the caller graph for this function:

◆ dummy_user_check()

subroutine user_intf::dummy_user_check ( real(kind=rp), intent(in)  t,
integer, intent(in)  tstep,
type(field_t), intent(inout)  u,
type(field_t), intent(inout)  v,
type(field_t), intent(inout)  w,
type(field_t), intent(inout)  p,
type(coef_t), intent(inout)  coef,
type(json_file), intent(inout)  params
)
private

Definition at line 399 of file user_intf.f90.

Here is the caller graph for this function:

◆ dummy_user_f()

subroutine user_intf::dummy_user_f ( real(kind=rp), intent(inout)  u,
real(kind=rp), intent(inout)  v,
real(kind=rp), intent(inout)  w,
integer, intent(in)  j,
integer, intent(in)  k,
integer, intent(in)  l,
integer, intent(in)  e,
real(kind=rp), intent(in)  t
)
private

Definition at line 345 of file user_intf.f90.

Here is the caller graph for this function:

◆ dummy_user_f_vector()

subroutine user_intf::dummy_user_f_vector ( class(fluid_user_source_term_t), intent(inout)  f,
real(kind=rp), intent(in)  t
)
private

Definition at line 338 of file user_intf.f90.

Here is the caller graph for this function:

◆ dummy_user_final_no_modules()

subroutine user_intf::dummy_user_final_no_modules ( real(kind=rp)  t,
type(json_file), intent(inout)  params
)
private

Definition at line 424 of file user_intf.f90.

Here is the caller graph for this function:

◆ dummy_user_ic()

subroutine user_intf::dummy_user_ic ( type(field_t), intent(inout)  u,
type(field_t), intent(inout)  v,
type(field_t), intent(inout)  w,
type(field_t), intent(inout)  p,
type(json_file), intent(inout)  params
)
private

Definition at line 319 of file user_intf.f90.

Here is the caller graph for this function:

◆ dummy_user_ic_scalar()

subroutine user_intf::dummy_user_ic_scalar ( type(field_t), intent(inout)  s,
type(json_file), intent(inout)  params
)
private
Parameters
sScalar field.
paramsJSON parameters.

Definition at line 331 of file user_intf.f90.

Here is the caller graph for this function:

◆ dummy_user_init_no_modules()

subroutine user_intf::dummy_user_init_no_modules ( real(kind=rp)  t,
type(field_t), intent(inout)  u,
type(field_t), intent(inout)  v,
type(field_t), intent(inout)  w,
type(field_t), intent(inout)  p,
type(coef_t), intent(inout)  coef,
type(json_file), intent(inout)  params
)
private

Definition at line 410 of file user_intf.f90.

Here is the caller graph for this function:

◆ dummy_user_init_no_simcomp()

subroutine user_intf::dummy_user_init_no_simcomp ( type(json_file), intent(inout)  params)
private

Definition at line 420 of file user_intf.f90.

Here is the caller graph for this function:

◆ dummy_user_material_properties()

subroutine, public user_intf::dummy_user_material_properties ( real(kind=rp), intent(in)  t,
integer, intent(in)  tstep,
real(kind=rp), intent(inout)  rho,
real(kind=rp), intent(inout)  mu,
real(kind=rp), intent(inout)  cp,
real(kind=rp), intent(inout)  lambda,
type(json_file), intent(inout)  params
)

Definition at line 439 of file user_intf.f90.

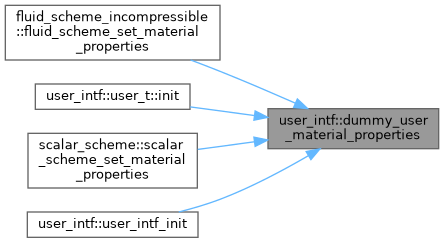

Here is the caller graph for this function:

◆ dummy_user_mesh_setup()

subroutine user_intf::dummy_user_mesh_setup ( type(mesh_t), intent(inout)  msh)
private

Definition at line 394 of file user_intf.f90.

Here is the caller graph for this function:

◆ dummy_user_scalar_f_vector()

subroutine user_intf::dummy_user_scalar_f_vector ( class(scalar_user_source_term_t), intent(inout)  f,
real(kind=rp), intent(in)  t
)
private

Definition at line 358 of file user_intf.f90.

Here is the caller graph for this function:

◆ simulation_component_user_settings()

type(json_file) function, public user_intf::simulation_component_user_settings ( character(len=*), intent(in)  name,
type(json_file), intent(inout)  params
)
Parameters
nameThe name of the object to be created.
paramsThe JSON object containing the user-defined component.
Returns
The JSON object for initializing the simulation component.

Definition at line 454 of file user_intf.f90.

Here is the caller graph for this function:

◆ user_intf_init()

subroutine user_intf::user_intf_init ( class(user_t), intent(inout)  u)

Definition at line 185 of file user_intf.f90.

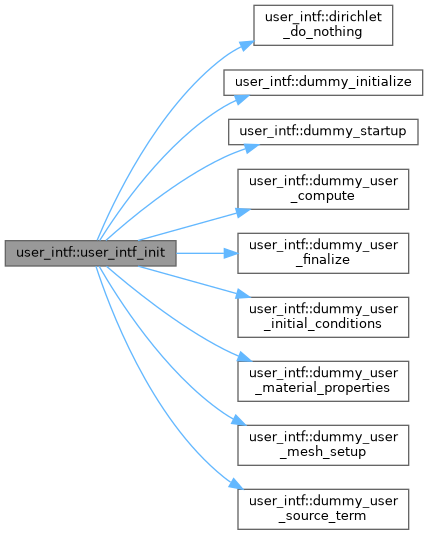

Here is the call graph for this function:
