fluid_scheme_compressible Module Reference

Data Types
type	fluid_scheme_compressible_t
	Base type of compressible fluid formulations. More...

Functions/Subroutines
subroutine	fluid_scheme_compressible_init (this, msh, lx, params, scheme, user)
	Initialize common data for compressible fluid scheme.
subroutine	fluid_scheme_compressible_free (this)
	Free allocated memory and cleanup resources.
subroutine	fluid_scheme_compressible_validate (this)
	Validate field initialization and compute derived quantities.
real(kind=dp) function	fluid_scheme_compressible_compute_cfl (this, dt)
	Compute CFL number.
subroutine	fluid_scheme_compressible_set_material_properties (this, params, user)
	Set material properties mu and rho.
subroutine	fluid_scheme_compressible_update_material_properties (this, time)
	Update variable material properties.
subroutine	fluid_scheme_compressible_update_physical_flux (this)
	Refresh the physical-flux switches from the current material properties.
subroutine	fluid_scheme_compressible_compute_max_wave_speed (this)
	Compute maximum wave speed for compressible flows.
subroutine	fluid_scheme_compressible_log_solver_info (this, params, scheme, lx)
	Log comprehensive solver information.

Function/Subroutine Documentation

fluid_scheme_compressible_compute_cfl()

real(kind=dp) function fluid_scheme_compressible::fluid_scheme_compressible_compute_cfl ( class(fluid_scheme_compressible_t), intent(in)  this, real(kind=dp), intent(in)  dt  )

private

Parameters

this	The compressible fluid scheme object
dt	Current timestep size

Returns

Computed CFL number

Definition at line 382 of file fluid_scheme_compressible.f90.

fluid_scheme_compressible_compute_max_wave_speed()

subroutine fluid_scheme_compressible::fluid_scheme_compressible_compute_max_wave_speed ( class(fluid_scheme_compressible_t), intent(inout)  this )

private

Parameters

this	The compressible fluid scheme object

TODO: Add support for SX

Definition at line 510 of file fluid_scheme_compressible.f90.

fluid_scheme_compressible_free()

subroutine fluid_scheme_compressible::fluid_scheme_compressible_free ( class(fluid_scheme_compressible_t), intent(inout)  this )

private

Parameters

this	The compressible fluid scheme object to destroy

Definition at line 249 of file fluid_scheme_compressible.f90.

fluid_scheme_compressible_init()

subroutine fluid_scheme_compressible::fluid_scheme_compressible_init	(	class(fluid_scheme_compressible_t), intent(inout), target	this,
		type(mesh_t), intent(inout), target	msh,
		integer, intent(in)	lx,
		type(json_file), intent(inout), target	params,
		character(len=*), intent(in)	scheme,
		type(user_t), intent(in), target	user
	)

Parameters

this	The compressible fluid scheme object
msh	Mesh data structure
lx	Polynomial order in x-direction
params	JSON configuration parameters
scheme	Name of the numerical scheme
user	User-defined parameters and functions

Definition at line 137 of file fluid_scheme_compressible.f90.

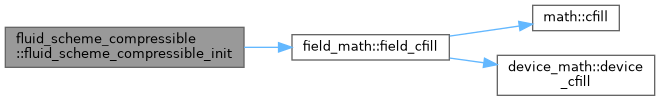

Here is the call graph for this function:

fluid_scheme_compressible_log_solver_info()

subroutine fluid_scheme_compressible::fluid_scheme_compressible_log_solver_info ( class(fluid_scheme_compressible_t), intent(inout)  this, type(json_file), intent(inout)  params, character(len=*), intent(in)  scheme, integer, intent(in)  lx  )

private

Parameters

this	The compressible fluid scheme object
params	JSON configuration parameters
scheme	Name of the numerical scheme
lx	Polynomial order in x-direction

Definition at line 533 of file fluid_scheme_compressible.f90.

fluid_scheme_compressible_set_material_properties()

subroutine fluid_scheme_compressible::fluid_scheme_compressible_set_material_properties ( class(fluid_scheme_compressible_t), intent(inout), target  this, type(json_file), intent(inout)  params, type(user_t), intent(in), target  user  )

private

Parameters

this	The compressible fluid scheme object
params	The case parameter file
user	The user interface

Definition at line 405 of file fluid_scheme_compressible.f90.

fluid_scheme_compressible_update_material_properties()

subroutine fluid_scheme_compressible::fluid_scheme_compressible_update_material_properties ( class(fluid_scheme_compressible_t), intent(inout)  this, type(time_state_t), intent(in)  time  )

private

Parameters

this	The compressible fluid scheme object
time	The time state

Definition at line 452 of file fluid_scheme_compressible.f90.

fluid_scheme_compressible_update_physical_flux()

subroutine fluid_scheme_compressible::fluid_scheme_compressible_update_physical_flux ( class(fluid_scheme_compressible_t), intent(inout)  this )

private

Decides whether the physical Navier-Stokes viscous and heat fluxes have to be evaluated at all, by testing \( \max_i |\mu_i| \) and \( \max_i |\kappa_i| \) against zero.

On a device backend the reduction runs as a kernel over the device resident arrays. Inspecting the host mirrors mux and kappax instead would be wrong as well as slow: field_cfill, and the device_math routines a user file calls, only write x_d, so the host copies stay at their initial zero and the solver would silently degrade to Euler.

The reduction is global, so all ranks agree on the branch taken even when the viscosity is non-zero on only some of them.

Parameters

this	The compressible fluid scheme object

Definition at line 481 of file fluid_scheme_compressible.f90.

fluid_scheme_compressible_validate()

subroutine fluid_scheme_compressible::fluid_scheme_compressible_validate ( class(fluid_scheme_compressible_t), intent(inout), target  this )

private

Parameters

this	The compressible fluid scheme object

Initialize the momentum field

Initialize total energy Total energy E := p / (gamma - 1) + 0.5 * rho * (u^2 + v^2 + w^2)

Initialize temperature T = p / (rho * (gamma - 1))

Compute initial maximum wave speed from initial conditions

Definition at line 341 of file fluid_scheme_compressible.f90.

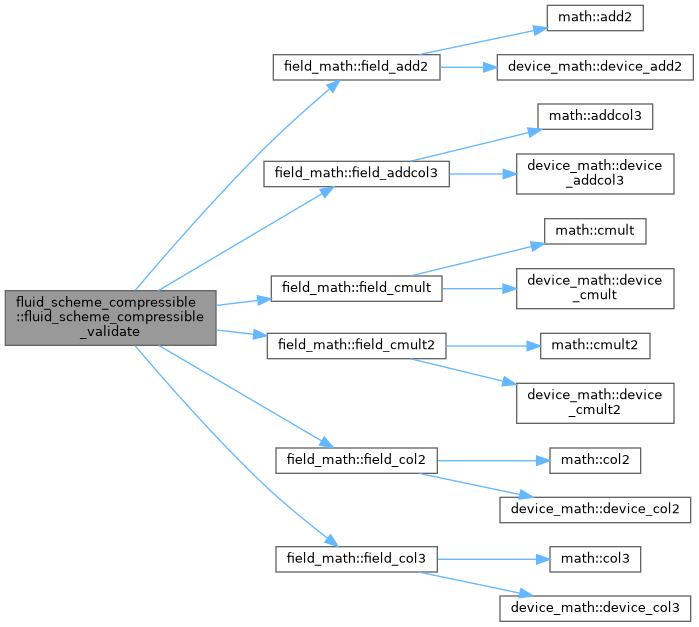

Here is the call graph for this function:
