A named collection of live fields to checkpoint together. More...

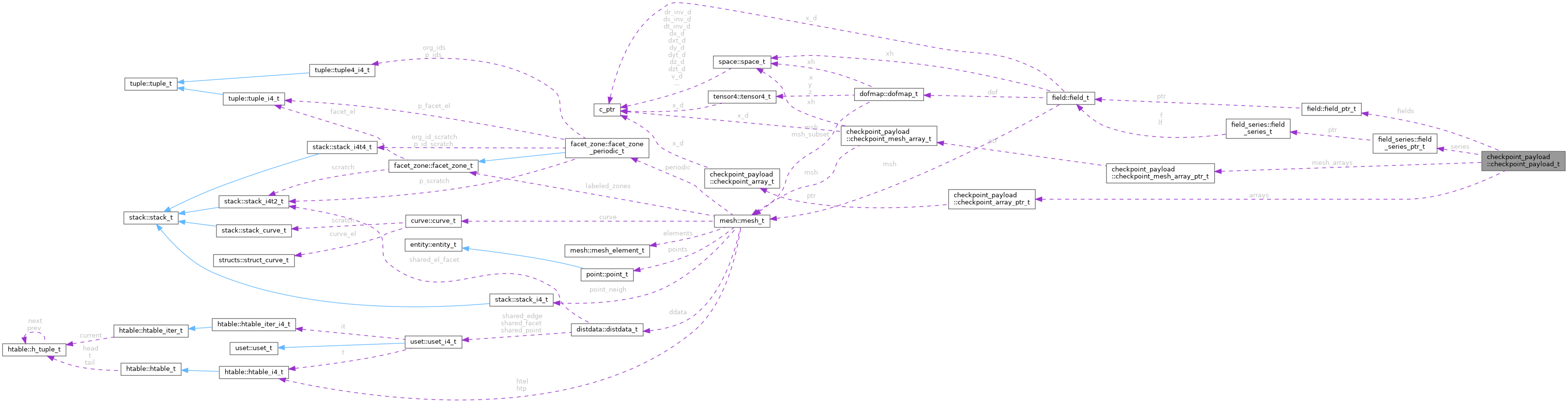

Collaboration diagram for checkpoint_payload::checkpoint_payload_t:

[legend]

Public Member Functions
procedure, pass(this)	init (this, name)
	Initialize a payload.

procedure, pass(this)	free (this)
	Release all pointers held by a payload.

procedure, pass(this)	add_field (this, fld)
	Add a field using its native name as the dataset name.

procedure, pass(this)	add_series (this, fld_series)
	Add a field series using the native names of its lag fields.

generic	add_array (this, name, x, global_count, offset, device_ptr, replicated)
	Add a contiguous real array of rank one to four.

generic	add_array (this, name, x, global_count, offset, device_ptr, replicated)
	Add a contiguous real array of rank one to four.

generic	add_array (this, name, x, global_count, offset, device_ptr, replicated)
	Add a contiguous real array of rank one to four.

generic	add_array (this, name, x, global_count, offset, device_ptr, replicated)
	Add a contiguous real array of rank one to four.

procedure, pass(this)	add_array_dp (this, name, x, global_count, offset, replicated)
	Add a rank-one array held in double precision. Separate from the `add_array` generic because `rp` and `dp` are the same kind in a double-precision build, which would make the generic ambiguous.

procedure, pass(this)	add_mesh_array (this, name, x, msh, xh, device_ptr)
	Add a four-dimensional nodal mesh array.

procedure, pass(this)	field_count (this)
	Return the number of fields in a payload.

procedure, pass(this)	series_count (this)
	Return the number of field series in a payload.

procedure, pass(this)	array_count (this)
	Return the number of arrays in a payload.

procedure, pass(this)	mesh_array_count (this)
	Return the number of mesh arrays in a payload.

procedure, pass(this)	find_field (this, name)
	Find a field by its native name.

procedure, pass(this)	find_series (this, name)
	Find a field series by the native name of its base field.

procedure, pass(this)	find_array (this, name)
	Find an array descriptor by its dataset name.

procedure, pass(this)	find_mesh_array (this, name)
	Find a mesh-array descriptor by its dataset name.

Public Attributes
character(len=:), allocatable	name
	Payload path below the HDF5 `Payloads` group.

type(field_ptr_t), dimension(:), allocatable	fields
	Registered individual fields.

type(field_series_ptr_t), dimension(:), allocatable	series
	Registered field series.

type(checkpoint_array_ptr_t), dimension(:), allocatable	arrays
	Registered generic arrays.

type(checkpoint_mesh_array_ptr_t), dimension(:), allocatable	mesh_arrays
	Registered nodal arrays distributed over mesh elements.

Private Member Functions
procedure, pass, private	add_array_1d (this, name, x, global_count, offset, device_ptr, replicated)
	Add a rank-one real array.

procedure, pass, private	add_array_2d (this, name, x, global_count, offset, device_ptr, replicated)
	Add a rank-two contiguous real array.

procedure, pass, private	add_array_3d (this, name, x, global_count, offset, device_ptr, replicated)
	Add a rank-three contiguous real array.

procedure, pass, private	add_array_4d (this, name, x, global_count, offset, device_ptr, replicated)
	Add a rank-four contiguous real array.

Detailed Description

Definition at line 92 of file checkpoint_payload.f90.

Member Function/Subroutine Documentation

◆ add_array() [1/4]

generic checkpoint_payload::checkpoint_payload_t::add_array	(	class(checkpoint_payload_t), intent(inout)	this,
		character(len=*), intent(in)	name,
		real(kind=rp), dimension(:), intent(inout), target	x,
		integer(kind=i8), intent(in), optional	global_count,
		integer(kind=i8), intent(in), optional	offset,
		type(c_ptr), intent(in), optional	device_ptr,
		logical, intent(in), optional	replicated
	)

Parameters

name	Dataset name within the payload.
x	Contiguous local array storage.
[optional]	global_count Number of entries in the global dataset.
[optional]	offset Zero-based offset of `x` in the global dataset.
[optional]	device_ptr Device storage corresponding to `x`.
[optional]	replicated Whether every rank owns a copy of `x`.

Definition at line 121 of file checkpoint_payload.f90.

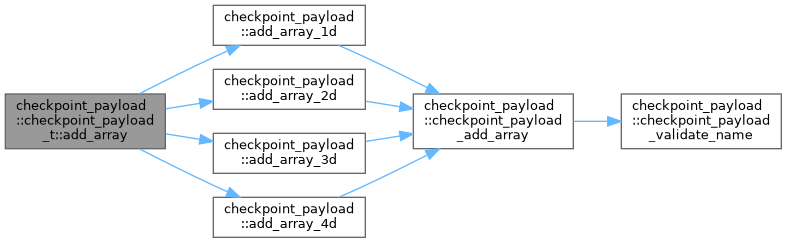

Here is the call graph for this function:

◆ add_array() [2/4]

generic checkpoint_payload::checkpoint_payload_t::add_array	(	class(checkpoint_payload_t), intent(inout)	this,
		character(len=*), intent(in)	name,
		real(kind=rp), dimension(:,:), intent(inout), target	x,
		integer(kind=i8), intent(in), optional	global_count,
		integer(kind=i8), intent(in), optional	offset,
		type(c_ptr), intent(in), optional	device_ptr,
		logical, intent(in), optional	replicated
	)

Parameters

name	Dataset name within the payload.
x	Contiguous local array storage.
[optional]	global_count Number of entries in the global dataset.
[optional]	offset Zero-based offset of `x` in the global dataset.
[optional]	device_ptr Device storage corresponding to `x`.
[optional]	replicated Whether every rank owns a copy of `x`.

Definition at line 121 of file checkpoint_payload.f90.

◆ add_array() [3/4]

generic checkpoint_payload::checkpoint_payload_t::add_array	(	class(checkpoint_payload_t), intent(inout)	this,
		character(len=*), intent(in)	name,
		real(kind=rp), dimension(:,:,:), intent(inout), target	x,
		integer(kind=i8), intent(in), optional	global_count,
		integer(kind=i8), intent(in), optional	offset,
		type(c_ptr), intent(in), optional	device_ptr,
		logical, intent(in), optional	replicated
	)

Parameters

name	Dataset name within the payload.
x	Contiguous local array storage.
[optional]	global_count Number of entries in the global dataset.
[optional]	offset Zero-based offset of `x` in the global dataset.
[optional]	device_ptr Device storage corresponding to `x`.
[optional]	replicated Whether every rank owns a copy of `x`.

Definition at line 121 of file checkpoint_payload.f90.

◆ add_array() [4/4]

generic checkpoint_payload::checkpoint_payload_t::add_array	(	class(checkpoint_payload_t), intent(inout)	this,
		character(len=*), intent(in)	name,
		real(kind=rp), dimension(:,:,:,:), intent(inout), target	x,
		integer(kind=i8), intent(in), optional	global_count,
		integer(kind=i8), intent(in), optional	offset,
		type(c_ptr), intent(in), optional	device_ptr,
		logical, intent(in), optional	replicated
	)

Parameters

name	Dataset name within the payload.
x	Contiguous local array storage.
[optional]	global_count Number of entries in the global dataset.
[optional]	offset Zero-based offset of `x` in the global dataset.
[optional]	device_ptr Device storage corresponding to `x`.
[optional]	replicated Whether every rank owns a copy of `x`.

Definition at line 121 of file checkpoint_payload.f90.

◆ add_array_1d()

procedure, pass, private checkpoint_payload::checkpoint_payload_t::add_array_1d	(	class(checkpoint_payload_t), intent(inout)	this,
		character(len=*), intent(in)	name,
		real(kind=rp), dimension(:), intent(inout), target	x,
		integer(kind=i8), intent(in), optional	global_count,
		integer(kind=i8), intent(in), optional	offset,
		type(c_ptr), intent(in), optional	device_ptr,
		logical, intent(in), optional	replicated
	)

private

Parameters

name	Dataset name within the payload.
x	Contiguous local array storage.
[optional]	global_count Number of entries in the global dataset.
[optional]	offset Zero-based offset of `x` in the global dataset.
[optional]	device_ptr Device storage corresponding to `x`.
[optional]	replicated Whether every rank owns a copy of `x`.

Definition at line 113 of file checkpoint_payload.f90.

◆ add_array_2d()

procedure, pass, private checkpoint_payload::checkpoint_payload_t::add_array_2d	(	class(checkpoint_payload_t), intent(inout)	this,
		character(len=*), intent(in)	name,
		real(kind=rp), dimension(:,:), intent(inout), target	x,
		integer(kind=i8), intent(in), optional	global_count,
		integer(kind=i8), intent(in), optional	offset,
		type(c_ptr), intent(in), optional	device_ptr,
		logical, intent(in), optional	replicated
	)

private

Parameters

name	Dataset name within the payload.
x	Contiguous local array storage.
[optional]	global_count Number of entries in the global dataset.
[optional]	offset Zero-based offset of `x` in the global dataset.
[optional]	device_ptr Device storage corresponding to `x`.
[optional]	replicated Whether every rank owns a copy of `x`.

Definition at line 115 of file checkpoint_payload.f90.

◆ add_array_3d()

procedure, pass, private checkpoint_payload::checkpoint_payload_t::add_array_3d	(	class(checkpoint_payload_t), intent(inout)	this,
		character(len=*), intent(in)	name,
		real(kind=rp), dimension(:,:,:), intent(inout), target	x,
		integer(kind=i8), intent(in), optional	global_count,
		integer(kind=i8), intent(in), optional	offset,
		type(c_ptr), intent(in), optional	device_ptr,
		logical, intent(in), optional	replicated
	)

private

Parameters

name	Dataset name within the payload.
x	Contiguous local array storage.
[optional]	global_count Number of entries in the global dataset.
[optional]	offset Zero-based offset of `x` in the global dataset.
[optional]	device_ptr Device storage corresponding to `x`.
[optional]	replicated Whether every rank owns a copy of `x`.

Definition at line 117 of file checkpoint_payload.f90.

◆ add_array_4d()

procedure, pass, private checkpoint_payload::checkpoint_payload_t::add_array_4d	(	class(checkpoint_payload_t), intent(inout)	this,
		character(len=*), intent(in)	name,
		real(kind=rp), dimension(:,:,:,:), intent(inout), target	x,
		integer(kind=i8), intent(in), optional	global_count,
		integer(kind=i8), intent(in), optional	offset,
		type(c_ptr), intent(in), optional	device_ptr,
		logical, intent(in), optional	replicated
	)

private

Parameters

name	Dataset name within the payload.
x	Contiguous local array storage.
[optional]	global_count Number of entries in the global dataset.
[optional]	offset Zero-based offset of `x` in the global dataset.
[optional]	device_ptr Device storage corresponding to `x`.
[optional]	replicated Whether every rank owns a copy of `x`.

Definition at line 119 of file checkpoint_payload.f90.

◆ add_array_dp()

procedure, pass(this) checkpoint_payload::checkpoint_payload_t::add_array_dp	(	class(checkpoint_payload_t), intent(inout)	this,
		character(len=*), intent(in)	name,
		real(kind=dp), dimension(:), intent(inout), target, contiguous	x,
		integer(kind=i8), intent(in), optional	global_count,
		integer(kind=i8), intent(in), optional	offset,
		logical, intent(in), optional	replicated
	)

Parameters

name	Dataset name within the payload.
x	Contiguous local array storage.
[optional]	global_count Number of entries in the global dataset.
[optional]	offset Zero-based offset of `x` in the global dataset.
[optional]	replicated Whether every rank owns a copy of `x`.

Definition at line 126 of file checkpoint_payload.f90.

◆ add_field()

procedure, pass(this) checkpoint_payload::checkpoint_payload_t::add_field	(	class(checkpoint_payload_t), intent(inout)	this,
		type(field_t), intent(in), target	fld
	)

Parameters

fld	Field to register.

Definition at line 109 of file checkpoint_payload.f90.

◆ add_mesh_array()

procedure, pass(this) checkpoint_payload::checkpoint_payload_t::add_mesh_array	(	class(checkpoint_payload_t), intent(inout)	this,
		character(len=*), intent(in)	name,
		real(kind=rp), dimension(:,:,:,:), intent(inout), target	x,
		type(mesh_t), intent(in), target	msh,
		type(space_t), intent(in), target	xh,
		type(c_ptr), intent(in), optional	device_ptr
	)

Parameters

name	Dataset name within the payload.
x	Array shaped as `(lx, ly, lz, nelv)`.
msh	Mesh defining the element distribution.
Xh	Function space defining the element-local nodal layout.
[optional]	device_ptr Device storage corresponding to `x`.

Definition at line 128 of file checkpoint_payload.f90.

◆ add_series()

procedure, pass(this) checkpoint_payload::checkpoint_payload_t::add_series	(	class(checkpoint_payload_t), intent(inout)	this,
		type(field_series_t), intent(in), target	fld_series
	)

Parameters

fld_series Field series to register.

Definition at line 111 of file checkpoint_payload.f90.

◆ array_count()

procedure, pass(this) checkpoint_payload::checkpoint_payload_t::array_count ( class(checkpoint_payload_t), intent(in) this )

Returns: Number of registered arrays.

Definition at line 134 of file checkpoint_payload.f90.

◆ field_count()

procedure, pass(this) checkpoint_payload::checkpoint_payload_t::field_count ( class(checkpoint_payload_t), intent(in) this )

Returns: Number of registered fields.

Definition at line 130 of file checkpoint_payload.f90.

◆ find_array()

procedure, pass(this) checkpoint_payload::checkpoint_payload_t::find_array	(	class(checkpoint_payload_t), intent(in)	this,
		character(len=*), intent(in)	name
	)

Parameters

name	Dataset name to find.

Returns: Pointer to the descriptor, or a disassociated pointer if absent.

Definition at line 143 of file checkpoint_payload.f90.

◆ find_field()

procedure, pass(this) checkpoint_payload::checkpoint_payload_t::find_field	(	class(checkpoint_payload_t), intent(in)	this,
		character(len=*), intent(in)	name
	)

Parameters

name	Native field name to find.

Returns: Pointer to the field, or a disassociated pointer if absent.

Definition at line 139 of file checkpoint_payload.f90.

◆ find_mesh_array()

procedure, pass(this) checkpoint_payload::checkpoint_payload_t::find_mesh_array	(	class(checkpoint_payload_t), intent(in)	this,
		character(len=*), intent(in)	name
	)

Parameters

name	Dataset name to find.

Returns: Pointer to the descriptor, or a disassociated pointer if absent.

Definition at line 145 of file checkpoint_payload.f90.

◆ find_series()

procedure, pass(this) checkpoint_payload::checkpoint_payload_t::find_series	(	class(checkpoint_payload_t), intent(in)	this,
		character(len=*), intent(in)	name
	)

Parameters

name	Native base-field name to find.

Returns: Pointer to the series, or a disassociated pointer if absent.

Definition at line 141 of file checkpoint_payload.f90.

◆ free()

procedure, pass(this) checkpoint_payload::checkpoint_payload_t::free ( class(checkpoint_payload_t), intent(inout) this )

Definition at line 107 of file checkpoint_payload.f90.

◆ init()

procedure, pass(this) checkpoint_payload::checkpoint_payload_t::init	(	class(checkpoint_payload_t), intent(inout)	this,
		character(len=*), intent(in)	name
	)

Parameters

name	Payload path below the HDF5 `Payloads` group.

Definition at line 105 of file checkpoint_payload.f90.

◆ mesh_array_count()

procedure, pass(this) checkpoint_payload::checkpoint_payload_t::mesh_array_count ( class(checkpoint_payload_t), intent(in) this )

Returns: Number of registered mesh arrays.

Definition at line 136 of file checkpoint_payload.f90.

◆ series_count()

procedure, pass(this) checkpoint_payload::checkpoint_payload_t::series_count ( class(checkpoint_payload_t), intent(in) this )

Returns: Number of registered field series.

Definition at line 132 of file checkpoint_payload.f90.

Member Data Documentation

◆ arrays

type(checkpoint_array_ptr_t), dimension(:), allocatable checkpoint_payload::checkpoint_payload_t::arrays

Definition at line 100 of file checkpoint_payload.f90.

◆ fields

type(field_ptr_t), dimension(:), allocatable checkpoint_payload::checkpoint_payload_t::fields

Definition at line 96 of file checkpoint_payload.f90.

◆ mesh_arrays

type(checkpoint_mesh_array_ptr_t), dimension(:), allocatable checkpoint_payload::checkpoint_payload_t::mesh_arrays

Definition at line 102 of file checkpoint_payload.f90.

◆ name

character(len=:), allocatable checkpoint_payload::checkpoint_payload_t::name

Definition at line 94 of file checkpoint_payload.f90.

◆ series

type(field_series_ptr_t), dimension(:), allocatable checkpoint_payload::checkpoint_payload_t::series

Definition at line 98 of file checkpoint_payload.f90.

The documentation for this type was generated from the following file:

/home/runner/work/neko/neko/src/common/checkpoint_payload.f90

Public Member Functions

Public Attributes

Private Member Functions

Detailed Description

Member Function/Subroutine Documentation

◆ add_array() [1/4]

◆ add_array() [2/4]

◆ add_array() [3/4]

◆ add_array() [4/4]

◆ add_array_1d()

◆ add_array_2d()

◆ add_array_3d()

◆ add_array_4d()

◆ add_array_dp()

◆ add_field()

◆ add_mesh_array()

◆ add_series()

◆ array_count()

◆ field_count()

◆ find_array()

◆ find_field()

◆ find_mesh_array()

◆ find_series()

◆ free()

◆ init()

◆ mesh_array_count()

◆ series_count()

Member Data Documentation

◆ arrays

◆ fields

◆ mesh_arrays

◆ name

◆ series
