Format-independent checkpoint payloads.

Data Types
type	checkpoint_array_ptr_t
	Pointer wrapper around `checkpoint_array_t`. More...

type	checkpoint_array_t
	A named real array and its selection in a global checkpoint dataset. More...

type	checkpoint_mesh_array_ptr_t
	Pointer wrapper around `checkpoint_mesh_array_t`. More...

type	checkpoint_mesh_array_t
	A named nodal real array distributed over mesh elements. More...

type	checkpoint_payload_ptr_t
	Pointer wrapper used to keep payload addresses stable as the list grows. More...

type	checkpoint_payload_t
	A named collection of live fields to checkpoint together. More...

Functions/Subroutines
subroutine	checkpoint_payload_init (this, name)
	Initialize a payload.

subroutine	checkpoint_payload_free (this)
	Release all pointers held by a payload.

subroutine	checkpoint_payload_add_field (this, fld)
	Add a field using its native name as the dataset name.

subroutine	checkpoint_payload_add_series (this, fld_series)
	Add a field series using the native names of its lag fields.

subroutine	add_array_1d (this, name, x, global_count, offset, device_ptr, replicated)
	Add a rank-one real array.

subroutine	add_array_2d (this, name, x, global_count, offset, device_ptr, replicated)
	Add a rank-two contiguous real array.

subroutine	add_array_3d (this, name, x, global_count, offset, device_ptr, replicated)
	Add a rank-three contiguous real array.

subroutine	add_array_4d (this, name, x, global_count, offset, device_ptr, replicated)
	Add a rank-four contiguous real array.

subroutine	add_mesh_array_4d (this, name, x, msh, xh, device_ptr)
	Add a four-dimensional nodal mesh array.

subroutine	checkpoint_payload_add_array (this, name, x, global_count, offset, device_ptr, replicated)
	Store a flattened real array in a payload.

subroutine	checkpoint_payload_add_array_dp (this, name, x, global_count, offset, replicated)
	Store a rank-one double-precision array in a payload.

subroutine	checkpoint_payload_add_mesh_array (this, name, x, msh, xh, device_ptr)
	Store a flattened nodal mesh array in a payload.

subroutine	checkpoint_payload_validate_name (this, name)
	Validate that a dataset name is non-empty and unique in a payload.

pure integer function	checkpoint_payload_field_count (this)
	Return the number of fields in a payload.

pure integer function	checkpoint_payload_series_count (this)
	Return the number of field series in a payload.

pure integer function	checkpoint_payload_array_count (this)
	Return the number of arrays in a payload.

pure integer function	checkpoint_payload_mesh_array_count (this)
	Return the number of mesh arrays in a payload.

type(field_t) function, pointer	checkpoint_payload_find_field (this, name)
	Find a field by its native name.

type(field_series_t) function, pointer	checkpoint_payload_find_series (this, name)
	Find a field series by the native name of its base field.

type(checkpoint_array_t) function, pointer	checkpoint_payload_find_array (this, name)
	Find an array descriptor by dataset name.

type(checkpoint_mesh_array_t) function, pointer	checkpoint_payload_find_mesh_array (this, name)
	Find a mesh-array descriptor by dataset name.

Function/Subroutine Documentation

◆ add_array_1d()

subroutine checkpoint_payload::add_array_1d	(	class(checkpoint_payload_t), intent(inout)	this,
		character(len=*), intent(in)	name,
		real(kind=rp), dimension(:), intent(inout), target	x,
		integer(kind=i8), intent(in), optional	global_count,
		integer(kind=i8), intent(in), optional	offset,
		type(c_ptr), intent(in), optional	device_ptr,
		logical, intent(in), optional	replicated
	)

private

Parameters

name	Dataset name within the payload.
x	Contiguous local array storage.
[optional]	global_count Number of entries in the global dataset.
[optional]	offset Zero-based offset of `x` in the global dataset.
[optional]	device_ptr Device storage corresponding to `x`.
[optional]	replicated Whether every rank owns a copy of `x`.

Definition at line 310 of file checkpoint_payload.f90.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ add_array_2d()

subroutine checkpoint_payload::add_array_2d	(	class(checkpoint_payload_t), intent(inout)	this,
		character(len=*), intent(in)	name,
		real(kind=rp), dimension(:,:), intent(inout), target	x,
		integer(kind=i8), intent(in), optional	global_count,
		integer(kind=i8), intent(in), optional	offset,
		type(c_ptr), intent(in), optional	device_ptr,
		logical, intent(in), optional	replicated
	)

private

Parameters

name	Dataset name within the payload.
x	Contiguous local array storage.
[optional]	global_count Number of entries in the global dataset.
[optional]	offset Zero-based offset of `x` in the global dataset.
[optional]	device_ptr Device storage corresponding to `x`.
[optional]	replicated Whether every rank owns a copy of `x`.

Definition at line 337 of file checkpoint_payload.f90.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ add_array_3d()

subroutine checkpoint_payload::add_array_3d	(	class(checkpoint_payload_t), intent(inout)	this,
		character(len=*), intent(in)	name,
		real(kind=rp), dimension(:,:,:), intent(inout), target	x,
		integer(kind=i8), intent(in), optional	global_count,
		integer(kind=i8), intent(in), optional	offset,
		type(c_ptr), intent(in), optional	device_ptr,
		logical, intent(in), optional	replicated
	)

private

Parameters

name	Dataset name within the payload.
x	Contiguous local array storage.
[optional]	global_count Number of entries in the global dataset.
[optional]	offset Zero-based offset of `x` in the global dataset.
[optional]	device_ptr Device storage corresponding to `x`.
[optional]	replicated Whether every rank owns a copy of `x`.

Definition at line 364 of file checkpoint_payload.f90.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ add_array_4d()

subroutine checkpoint_payload::add_array_4d	(	class(checkpoint_payload_t), intent(inout)	this,
		character(len=*), intent(in)	name,
		real(kind=rp), dimension(:,:,:,:), intent(inout), target	x,
		integer(kind=i8), intent(in), optional	global_count,
		integer(kind=i8), intent(in), optional	offset,
		type(c_ptr), intent(in), optional	device_ptr,
		logical, intent(in), optional	replicated
	)

private

Parameters

name	Dataset name within the payload.
x	Contiguous local array storage.
[optional]	global_count Number of entries in the global dataset.
[optional]	offset Zero-based offset of `x` in the global dataset.
[optional]	device_ptr Device storage corresponding to `x`.
[optional]	replicated Whether every rank owns a copy of `x`.

Definition at line 391 of file checkpoint_payload.f90.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ add_mesh_array_4d()

subroutine checkpoint_payload::add_mesh_array_4d	(	class(checkpoint_payload_t), intent(inout)	this,
		character(len=*), intent(in)	name,
		real(kind=rp), dimension(:,:,:,:), intent(inout), target	x,
		type(mesh_t), intent(in), target	msh,
		type(space_t), intent(in), target	xh,
		type(c_ptr), intent(in), optional	device_ptr
	)

private

Parameters

name	Dataset name within the payload.
x	Array shaped as `(lx, ly, lz, nelv)`.
msh	Mesh defining the element distribution.
Xh	Function space defining the element-local nodal layout.
[optional]	device_ptr Device storage corresponding to `x`.

Definition at line 417 of file checkpoint_payload.f90.

Here is the call graph for this function:

◆ checkpoint_payload_add_array()

subroutine checkpoint_payload::checkpoint_payload_add_array	(	class(checkpoint_payload_t), intent(inout)	this,
		character(len=*), intent(in)	name,
		real(kind=rp), dimension(:), intent(inout), pointer	x,
		integer(kind=i8), intent(in), optional	global_count,
		integer(kind=i8), intent(in), optional	offset,
		type(c_ptr), intent(in), optional	device_ptr,
		logical, intent(in), optional	replicated
	)

private

Parameters

name	Dataset name within the payload.
x	Contiguous local array storage.
[optional]	global_count Number of entries in the global dataset.
[optional]	offset Zero-based offset of `x` in the global dataset.
[optional]	device_ptr Device storage corresponding to `x`.
[optional]	replicated Whether every rank owns a copy of `x`.

Definition at line 447 of file checkpoint_payload.f90.

Here is the call graph for this function:

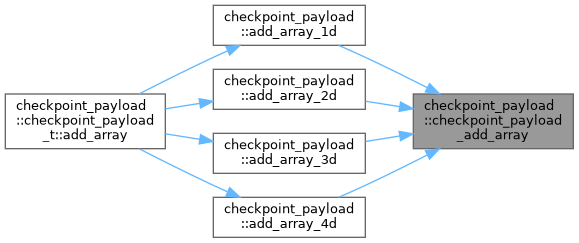

Here is the caller graph for this function:

◆ checkpoint_payload_add_array_dp()

subroutine checkpoint_payload::checkpoint_payload_add_array_dp	(	class(checkpoint_payload_t), intent(inout)	this,
		character(len=*), intent(in)	name,
		real(kind=dp), dimension(:), intent(inout), target, contiguous	x,
		integer(kind=i8), intent(in), optional	global_count,
		integer(kind=i8), intent(in), optional	offset,
		logical, intent(in), optional	replicated
	)

private

Parameters

name	Dataset name within the payload.
x	Contiguous local array storage.
[optional]	global_count Number of entries in the global dataset.
[optional]	offset Zero-based offset of `x` in the global dataset.
[optional]	replicated Whether every rank owns a copy of `x`.

Definition at line 505 of file checkpoint_payload.f90.

Here is the call graph for this function:

◆ checkpoint_payload_add_field()

subroutine checkpoint_payload::checkpoint_payload_add_field	(	class(checkpoint_payload_t), intent(inout)	this,
		type(field_t), intent(in), target	fld
	)

private

Parameters

fld	Field to register.

Definition at line 236 of file checkpoint_payload.f90.

Here is the call graph for this function:

◆ checkpoint_payload_add_mesh_array()

subroutine checkpoint_payload::checkpoint_payload_add_mesh_array	(	class(checkpoint_payload_t), intent(inout)	this,
		character(len=*), intent(in)	name,
		real(kind=rp), dimension(:), intent(inout), pointer	x,
		type(mesh_t), intent(in), target	msh,
		type(space_t), intent(in), target	xh,
		type(c_ptr), intent(in), optional	device_ptr
	)

private

Parameters

name	Dataset name within the payload.
x	Contiguous local array storage.
msh	Mesh defining the element distribution.
Xh	Function space defining the element-local nodal layout.
[optional]	device_ptr Device storage corresponding to `x`.

Definition at line 561 of file checkpoint_payload.f90.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ checkpoint_payload_add_series()

subroutine checkpoint_payload::checkpoint_payload_add_series	(	class(checkpoint_payload_t), intent(inout)	this,
		type(field_series_t), intent(in), target	fld_series
	)

private

Parameters

fld_series Field series to register.

Definition at line 262 of file checkpoint_payload.f90.

Here is the call graph for this function:

◆ checkpoint_payload_array_count()

pure integer function checkpoint_payload::checkpoint_payload_array_count ( class(checkpoint_payload_t), intent(in) this )

private

Returns: Number of registered arrays.

Definition at line 669 of file checkpoint_payload.f90.

◆ checkpoint_payload_field_count()

pure integer function checkpoint_payload::checkpoint_payload_field_count ( class(checkpoint_payload_t), intent(in) this )

private

Returns: Number of registered fields.

Definition at line 641 of file checkpoint_payload.f90.

◆ checkpoint_payload_find_array()

type(checkpoint_array_t) function, pointer checkpoint_payload::checkpoint_payload_find_array	(	class(checkpoint_payload_t), intent(in)	this,
		character(len=*), intent(in)	name
	)

private

Parameters

name	Dataset name to find.

Returns: Pointer to the descriptor, or a disassociated pointer if absent.

Definition at line 736 of file checkpoint_payload.f90.

◆ checkpoint_payload_find_field()

type(field_t) function, pointer checkpoint_payload::checkpoint_payload_find_field	(	class(checkpoint_payload_t), intent(in)	this,
		character(len=*), intent(in)	name
	)

private

Parameters

name	Native field name to find.

Returns: Pointer to the field, or a disassociated pointer if absent.

Definition at line 698 of file checkpoint_payload.f90.

◆ checkpoint_payload_find_mesh_array()

type(checkpoint_mesh_array_t) function, pointer checkpoint_payload::checkpoint_payload_find_mesh_array	(	class(checkpoint_payload_t), intent(in)	this,
		character(len=*), intent(in)	name
	)

private

Parameters

name	Dataset name to find.

Returns: Pointer to the descriptor, or a disassociated pointer if absent.

Definition at line 755 of file checkpoint_payload.f90.

◆ checkpoint_payload_find_series()

type(field_series_t) function, pointer checkpoint_payload::checkpoint_payload_find_series	(	class(checkpoint_payload_t), intent(in)	this,
		character(len=*), intent(in)	name
	)

private

Parameters

name	Native base-field name to find.

Returns: Pointer to the series, or a disassociated pointer if absent.

Definition at line 717 of file checkpoint_payload.f90.

◆ checkpoint_payload_free()

subroutine checkpoint_payload::checkpoint_payload_free ( class(checkpoint_payload_t), intent(inout) this )

private

Definition at line 181 of file checkpoint_payload.f90.

◆ checkpoint_payload_init()

subroutine checkpoint_payload::checkpoint_payload_init	(	class(checkpoint_payload_t), intent(inout)	this,
		character(len=*), intent(in)	name
	)

Parameters

name	Payload path below the HDF5 `Payloads` group.

Definition at line 159 of file checkpoint_payload.f90.

◆ checkpoint_payload_mesh_array_count()

pure integer function checkpoint_payload::checkpoint_payload_mesh_array_count ( class(checkpoint_payload_t), intent(in) this )

private

Returns: Number of registered mesh arrays.

Definition at line 683 of file checkpoint_payload.f90.

◆ checkpoint_payload_series_count()

pure integer function checkpoint_payload::checkpoint_payload_series_count ( class(checkpoint_payload_t), intent(in) this )

private

Returns: Number of registered field series.

Definition at line 655 of file checkpoint_payload.f90.

◆ checkpoint_payload_validate_name()

subroutine checkpoint_payload::checkpoint_payload_validate_name	(	class(checkpoint_payload_t), intent(in)	this,
		character(len=*), intent(in)	name
	)

private

Parameters

name	Dataset name to validate.

Definition at line 595 of file checkpoint_payload.f90.

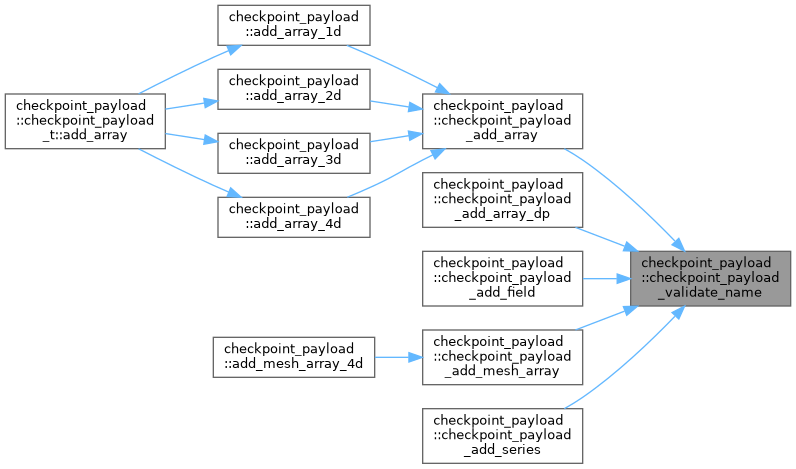

Here is the caller graph for this function:

Data Types

Functions/Subroutines

Function/Subroutine Documentation

◆ add_array_1d()

◆ add_array_2d()

◆ add_array_3d()

◆ add_array_4d()

◆ add_mesh_array_4d()

◆ checkpoint_payload_add_array()

◆ checkpoint_payload_add_array_dp()

◆ checkpoint_payload_add_field()

◆ checkpoint_payload_add_mesh_array()

◆ checkpoint_payload_add_series()

◆ checkpoint_payload_array_count()

◆ checkpoint_payload_field_count()

◆ checkpoint_payload_find_array()

◆ checkpoint_payload_find_field()

◆ checkpoint_payload_find_mesh_array()

◆ checkpoint_payload_find_series()

◆ checkpoint_payload_free()

◆ checkpoint_payload_init()

◆ checkpoint_payload_mesh_array_count()

◆ checkpoint_payload_series_count()

◆ checkpoint_payload_validate_name()
