Entropy-based artificial viscosity model for compressible flow. More...

Inheritance diagram for entropy_viscosity::entropy_viscosity_t:

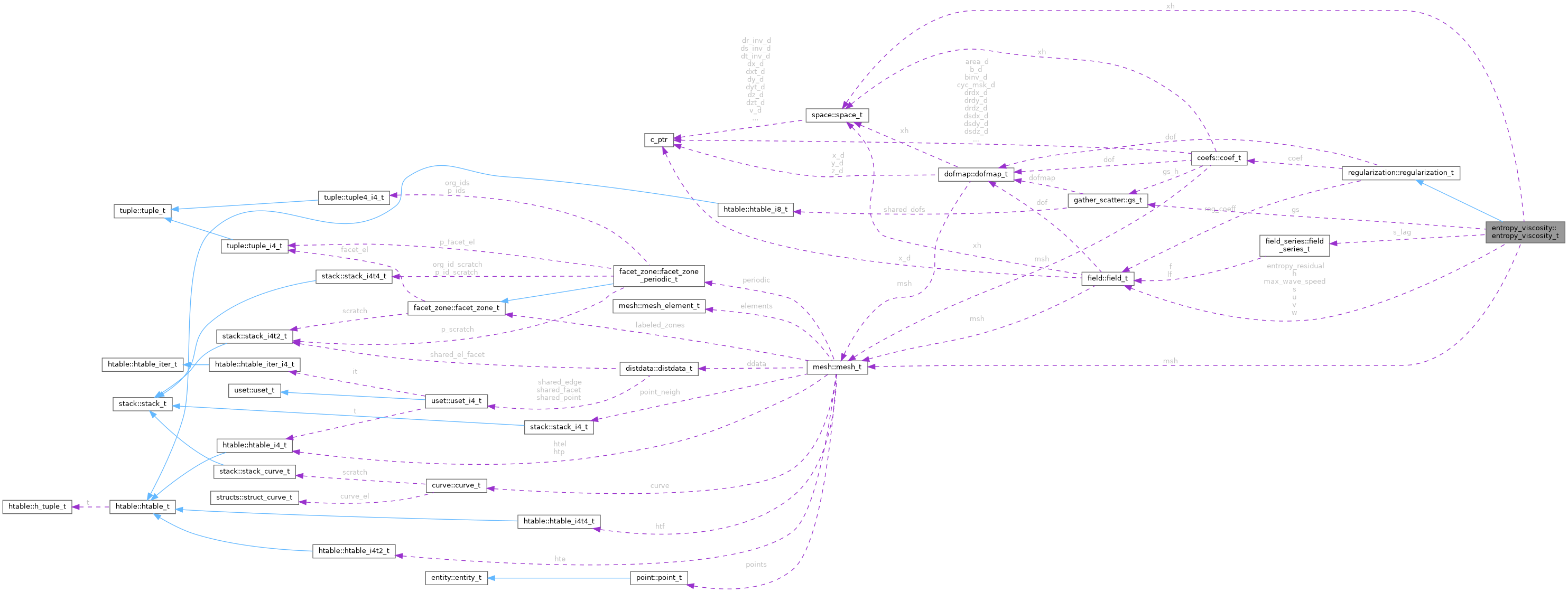

Collaboration diagram for entropy_viscosity::entropy_viscosity_t:

[legend]

Public Member Functions
procedure, pass(this)	init (this, case, json)
	Initialize the entropy viscosity model.

procedure, pass(this)	free (this)
	Free the entropy viscosity model.

procedure, pass(this)	preprocess (this, time)
	Compute viscosity before advancing the time step.

procedure, pass(this)	compute (this, time)
	Advance the entropy history after the time step.

procedure, pass(this)	restart (this, time)
	Reconstruct entropy history after restart.

procedure, pass(this)	compute_h (this)
	Compute the local characteristic mesh size.

procedure, pass(this)	set_fields (this, p, rho, u, v, w, max_wave_speed, msh, xh, gs, gamma)
	Associate the compressible flow fields.

procedure, pass(this)	compute_entropy (this)
	Compute entropy from pressure and density.

procedure, pass(this)	init_base (this, dof, coef, reg_coeff_name)
	Constructor for the avm_t (base) class.

procedure, pass(this)	free_base (this)
	Destructor for the avm_t (base) class.

procedure(avm_init), deferred, pass	init (this, case, json)
	The common constructor.

procedure(avm_free), deferred, pass	free (this)
	Destructor.

procedure(avm_preprocess), deferred, pass	preprocess (this, time)
	Perform artificial viscosity related computations before the time step.

procedure(avm_compute), deferred, pass	compute (this, time)
	Perform artificial viscosity related computations after the time step.

procedure, pass(this)	restart (this, time)
	Restore model state after loading a checkpoint.

Public Attributes
real(kind=rp)	c_avisc_entropy
	Entropy viscosity coefficient.

real(kind=rp)	c_avisc_low
	Low-order viscosity coefficient.

real(kind=rp)	gamma
	Ratio of specific heats.

type(field_t)	entropy_residual
	Entropy residual field.

type(field_series_t)	s_lag
	Entropy history used by the BDF residual.

type(field_t), pointer	s => null()
	Current entropy field.

type(field_t), pointer	p => null()
	Pressure field.

type(field_t), pointer	rho => null()
	Density field.

type(field_t), pointer	u => null()
	First velocity component.

type(field_t), pointer	v => null()
	Second velocity component.

type(field_t), pointer	w => null()
	Third velocity component.

type(field_t)	h
	Local characteristic mesh size.

type(field_t), pointer	max_wave_speed => null()
	Maximum local characteristic wave speed.

type(mesh_t), pointer	msh => null()
	Computational mesh.

type(space_t), pointer	xh => null()
	Function space.

type(gs_t), pointer	gs => null()
	Gather-scatter operator for the function space.

type(field_t), pointer	reg_coeff => null()
	Artificial viscosity.

type(coef_t), pointer	coef => null()
	SEM coefficients.

type(dofmap_t), pointer	dof => null()
	SEM dofmap.

integer	les_model_registry_size = 0
	Number of custom artificial viscosity model allocators.

Private Member Functions
procedure, pass, private	compute_residual (this, tstep, dt, dt_lag)
	Compute the entropy residual.

procedure, pass, private	compute_viscosity (this, tstep)
	Compute the entropy viscosity coefficient.

procedure, pass, private	smooth_viscosity (this)
	Smooth viscosity across element interfaces.

procedure, pass, private	apply_element_max (this)
	Replace nodal values by each element maximum.

procedure, pass, private	low_order_viscosity (this, i)
	Evaluate the low-order viscosity at a point.

Detailed Description

Definition at line 78 of file entropy_viscosity.f90.

Member Function/Subroutine Documentation

◆ apply_element_max()

procedure, pass, private entropy_viscosity::entropy_viscosity_t::apply_element_max ( class(entropy_viscosity_t), intent(inout) this )

private

Parameters

this	The entropy viscosity model.

Definition at line 139 of file entropy_viscosity.f90.

◆ compute() [1/2]

procedure(avm_compute), deferred, pass artificial_viscosity_model::avm_t::compute	(	class(avm_t), intent(inout)	this,
		type(time_state_t), intent(in)	time
	)

pure virtualinherited

Definition at line 69 of file avm.f90.

◆ compute() [2/2]

procedure, pass(this) entropy_viscosity::entropy_viscosity_t::compute	(	class(entropy_viscosity_t), intent(inout)	this,
		type(time_state_t), intent(in)	time
	)

Parameters

this	The entropy viscosity model.
time	The current time state.

Definition at line 119 of file entropy_viscosity.f90.

◆ compute_entropy()

procedure, pass(this) entropy_viscosity::entropy_viscosity_t::compute_entropy ( class(entropy_viscosity_t), intent(inout) this )

Parameters

this	The entropy viscosity model.

Definition at line 127 of file entropy_viscosity.f90.

◆ compute_h()

procedure, pass(this) entropy_viscosity::entropy_viscosity_t::compute_h ( class(entropy_viscosity_t), intent(inout) this )

Todo:: Move this operation to a shared module.

Parameters

this	The entropy viscosity model.

Definition at line 123 of file entropy_viscosity.f90.

◆ compute_residual()

procedure, pass, private entropy_viscosity::entropy_viscosity_t::compute_residual	(	class(entropy_viscosity_t), intent(inout)	this,
		integer, intent(in)	tstep,
		real(kind=rp), intent(in)	dt,
		real(kind=rp), dimension(10), intent(in)	dt_lag
	)

private

Parameters

this	The entropy viscosity model.
tstep	The current time-step index.
dt	The current time-step size.
dt_lag	Previous time-step sizes.

Definition at line 130 of file entropy_viscosity.f90.

◆ compute_viscosity()

procedure, pass, private entropy_viscosity::entropy_viscosity_t::compute_viscosity	(	class(entropy_viscosity_t), intent(inout)	this,
		integer, intent(in)	tstep
	)

private

Parameters

this	The entropy viscosity model.
tstep	The current time-step index.

Definition at line 133 of file entropy_viscosity.f90.

◆ free() [1/2]

procedure(avm_free), deferred, pass artificial_viscosity_model::avm_t::free ( class(avm_t), intent(inout) this )

pure virtualinherited

Definition at line 65 of file avm.f90.

◆ free() [2/2]

procedure, pass(this) entropy_viscosity::entropy_viscosity_t::free ( class(entropy_viscosity_t), intent(inout) this )

Parameters

this	The entropy viscosity model.

Definition at line 115 of file entropy_viscosity.f90.

◆ free_base()

procedure, pass(this) artificial_viscosity_model::avm_t::free_base ( class(avm_t), intent(inout) this )

inherited

Parameters

this	The artificial viscosity model.

Definition at line 61 of file avm.f90.

◆ init() [1/2]

procedure(avm_init), deferred, pass artificial_viscosity_model::avm_t::init	(	class(avm_t), intent(inout)	this,
		class(case_t), intent(inout), target	case,
		type(json_file), intent(inout)	json
	)

pure virtualinherited

Definition at line 63 of file avm.f90.

◆ init() [2/2]

procedure, pass(this) entropy_viscosity::entropy_viscosity_t::init	(	class(entropy_viscosity_t), intent(inout)	this,
		class(case_t), intent(inout), target	case,
		type(json_file), intent(inout)	json
	)

Parameters

this	The entropy viscosity model.
case	The compressible-flow case.
json	The model configuration.

Definition at line 113 of file entropy_viscosity.f90.

◆ init_base()

procedure, pass(this) artificial_viscosity_model::avm_t::init_base	(	class(avm_t), intent(inout)	this,
		class(dofmap_t), intent(in), target	dof,
		class(coef_t), intent(in), target	coef,
		character(len=*), intent(in)	reg_coeff_name
	)

inherited

Parameters

object	The object to be allocated.
type_name	The name of the artificial viscosity model.
case	The case_t object.
json	A dictionary with parameters. Constructor for the avm_t (base) class.
this	The artificial viscosity model.
dof	Map of degrees of freedom.
coef	The SEM coefficients.
reg_coeff_name	The name of the artificial viscosity field.

Definition at line 59 of file avm.f90.

◆ low_order_viscosity()

procedure, pass, private entropy_viscosity::entropy_viscosity_t::low_order_viscosity	(	class(entropy_viscosity_t), intent(in)	this,
		integer, intent(in)	i
	)

private

Parameters

this	The entropy viscosity model.
i	The point index.

Returns: The low-order viscosity.

Definition at line 142 of file entropy_viscosity.f90.

◆ preprocess() [1/2]

procedure(avm_preprocess), deferred, pass artificial_viscosity_model::avm_t::preprocess	(	class(avm_t), intent(inout)	this,
		type(time_state_t), intent(in)	time
	)

pure virtualinherited

Definition at line 67 of file avm.f90.

◆ preprocess() [2/2]

procedure, pass(this) entropy_viscosity::entropy_viscosity_t::preprocess	(	class(entropy_viscosity_t), intent(inout)	this,
		type(time_state_t), intent(in)	time
	)

Parameters

this	The entropy viscosity model.
time	The current time state.

Definition at line 117 of file entropy_viscosity.f90.

◆ restart() [1/2]

procedure, pass(this) artificial_viscosity_model::avm_t::restart	(	class(avm_t), intent(inout)	this,
		type(time_state_t), intent(in)	time
	)

inherited

Parameters

this	The artificial viscosity model.
time	The restored time state.

Definition at line 71 of file avm.f90.

◆ restart() [2/2]

procedure, pass(this) entropy_viscosity::entropy_viscosity_t::restart	(	class(entropy_viscosity_t), intent(inout)	this,
		type(time_state_t), intent(in)	time
	)

Parameters

this	The entropy viscosity model.
time	The restored time state.

Definition at line 121 of file entropy_viscosity.f90.

◆ set_fields()

procedure, pass(this) entropy_viscosity::entropy_viscosity_t::set_fields	(	class(entropy_viscosity_t), intent(inout)	this,
		type(field_t), intent(in), target	p,
		type(field_t), intent(in), target	rho,
		type(field_t), intent(in), target	u,
		type(field_t), intent(in), target	v,
		type(field_t), intent(in), target	w,
		type(field_t), intent(in), target	max_wave_speed,
		type(mesh_t), intent(in), target	msh,
		type(space_t), intent(in), target	xh,
		type(gs_t), intent(in), target	gs,
		real(kind=rp), intent(in)	gamma
	)

Parameters

this	The entropy viscosity model.
p	The pressure field.
rho	The density field.
u	The first velocity component.
v	The second velocity component.
w	The third velocity component.
max_wave_speed	The maximum characteristic wave speed.
msh	The computational mesh.
Xh	The function space.
gs	The gather-scatter operator.
gamma	The ratio of specific heats.

Definition at line 125 of file entropy_viscosity.f90.

◆ smooth_viscosity()

procedure, pass, private entropy_viscosity::entropy_viscosity_t::smooth_viscosity ( class(entropy_viscosity_t), intent(inout) this )

private

Parameters

this	The entropy viscosity model.

Definition at line 136 of file entropy_viscosity.f90.

Member Data Documentation

◆ c_avisc_entropy

real(kind=rp) entropy_viscosity::entropy_viscosity_t::c_avisc_entropy

Definition at line 80 of file entropy_viscosity.f90.

◆ c_avisc_low

real(kind=rp) entropy_viscosity::entropy_viscosity_t::c_avisc_low

Definition at line 82 of file entropy_viscosity.f90.

◆ coef

type(coef_t), pointer artificial_viscosity_model::avm_t::coef => null()

inherited

Definition at line 52 of file avm.f90.

◆ dof

type(dofmap_t), pointer artificial_viscosity_model::avm_t::dof => null()

inherited

Definition at line 54 of file avm.f90.

◆ entropy_residual

type(field_t) entropy_viscosity::entropy_viscosity_t::entropy_residual

Definition at line 86 of file entropy_viscosity.f90.

◆ gamma

real(kind=rp) entropy_viscosity::entropy_viscosity_t::gamma

Definition at line 84 of file entropy_viscosity.f90.

◆ gs

type(gs_t), pointer entropy_viscosity::entropy_viscosity_t::gs => null()

Definition at line 110 of file entropy_viscosity.f90.

◆ h

type(field_t) entropy_viscosity::entropy_viscosity_t::h

Definition at line 102 of file entropy_viscosity.f90.

◆ les_model_registry_size

integer artificial_viscosity_model::avm_t::les_model_registry_size = 0

inherited

Definition at line 56 of file avm.f90.

◆ max_wave_speed

type(field_t), pointer entropy_viscosity::entropy_viscosity_t::max_wave_speed => null()

Definition at line 104 of file entropy_viscosity.f90.

◆ msh

type(mesh_t), pointer entropy_viscosity::entropy_viscosity_t::msh => null()

Definition at line 106 of file entropy_viscosity.f90.

◆ p

type(field_t), pointer entropy_viscosity::entropy_viscosity_t::p => null()

Definition at line 92 of file entropy_viscosity.f90.

◆ reg_coeff

type(field_t), pointer artificial_viscosity_model::avm_t::reg_coeff => null()

inherited

Definition at line 50 of file avm.f90.

◆ rho

type(field_t), pointer entropy_viscosity::entropy_viscosity_t::rho => null()

Definition at line 94 of file entropy_viscosity.f90.

◆ s

type(field_t), pointer entropy_viscosity::entropy_viscosity_t::s => null()

Definition at line 90 of file entropy_viscosity.f90.

◆ s_lag

type(field_series_t) entropy_viscosity::entropy_viscosity_t::s_lag

Definition at line 88 of file entropy_viscosity.f90.

◆ u

type(field_t), pointer entropy_viscosity::entropy_viscosity_t::u => null()

Definition at line 96 of file entropy_viscosity.f90.

◆ v

type(field_t), pointer entropy_viscosity::entropy_viscosity_t::v => null()

Definition at line 98 of file entropy_viscosity.f90.

◆ w

type(field_t), pointer entropy_viscosity::entropy_viscosity_t::w => null()

Definition at line 100 of file entropy_viscosity.f90.

◆ xh

type(space_t), pointer entropy_viscosity::entropy_viscosity_t::xh => null()

Definition at line 108 of file entropy_viscosity.f90.

The documentation for this type was generated from the following file:

/home/runner/work/neko/neko/src/viscous_regularization/avm/entropy_viscosity.f90

Public Member Functions

Public Attributes

Private Member Functions

Detailed Description

Member Function/Subroutine Documentation

◆ apply_element_max()

◆ compute() [1/2]

◆ compute() [2/2]

◆ compute_entropy()

◆ compute_h()

◆ compute_residual()

◆ compute_viscosity()

◆ free() [1/2]

◆ free() [2/2]

◆ free_base()

◆ init() [1/2]

◆ init() [2/2]

◆ init_base()

◆ low_order_viscosity()

◆ preprocess() [1/2]

◆ preprocess() [2/2]

◆ restart() [1/2]

◆ restart() [2/2]

◆ set_fields()

◆ smooth_viscosity()

Member Data Documentation

◆ c_avisc_entropy

◆ c_avisc_low

◆ coef

◆ dof

◆ entropy_residual

◆ gamma

◆ gs

◆ h

◆ les_model_registry_size

◆ max_wave_speed

◆ msh

◆ p

◆ reg_coeff

◆ rho

◆ s

◆ s_lag

◆ u

◆ v

◆ w

◆ xh
