entropy_viscosity Module Reference

Implements the entropy-based artificial viscosity model.

Data Types
type	entropy_viscosity_t
	Entropy-based artificial viscosity model for compressible flow. More...

Functions/Subroutines
subroutine	entropy_viscosity_init (this, case, json)
	Initialize the entropy viscosity model from a case and JSON parameters.
subroutine	entropy_viscosity_free (this)
	Free the entropy viscosity model.
subroutine	entropy_viscosity_preprocess (this, time)
	Compute the artificial viscosity before a time step.
subroutine	entropy_viscosity_compute_residual (this, tstep, dt, dt_lag)
	Compute the BDF entropy residual.
subroutine	entropy_viscosity_compute_viscosity (this, tstep)
	Compute and limit the entropy viscosity coefficient.
subroutine	entropy_viscosity_smooth_viscosity (this)
	Cross-element smoothing via gather-scatter averaging. Averages viscosity values at shared nodes between elements.
subroutine	entropy_viscosity_apply_element_max (this)
	Replace nodal viscosity values by the maximum in each element.
subroutine	entropy_viscosity_set_fields (this, p, rho, u, v, w, max_wave_speed, msh, xh, gs, gamma)
	Associate the fields and discretization used by the model.
subroutine	entropy_viscosity_compute_entropy (this)
	Compute entropy from the current pressure and density.
subroutine	entropy_viscosity_restart (this, time)
	Reinitialize entropy history from a restarted flow state.
subroutine	entropy_viscosity_update_lag (this, time)
	Shift the entropy history and compute the new entropy.
subroutine	entropy_viscosity_col3_vector_cpu (us, vs, ws, u, v, w, s, n)
	Multiply each velocity component by entropy on the CPU.
subroutine	entropy_viscosity_abs_add_cpu (entropy_residual, div_field, n)
	Add the flux divergence to the residual and take its absolute value.
pure real(kind=rp) function	entropy_viscosity_low_order (this, i)
	Compute low-order viscosity at one point.
subroutine	entropy_viscosity_compute_h (this)
	Compute the characteristic mesh size. Adapted from les_model_compute_delta in les_model.f90.

Function/Subroutine Documentation

entropy_viscosity_abs_add_cpu()

subroutine entropy_viscosity::entropy_viscosity_abs_add_cpu ( real(kind=rp), dimension(n), intent(inout)  entropy_residual, real(kind=rp), dimension(n), intent(in)  div_field, integer, intent(in)  n  )

private

Parameters

entropy_residual	The entropy residual to update.
div_field	The entropy-flux divergence.
n	Number of field entries.

Definition at line 538 of file entropy_viscosity.f90.

Here is the caller graph for this function:

entropy_viscosity_apply_element_max()

subroutine entropy_viscosity::entropy_viscosity_apply_element_max ( class(entropy_viscosity_t), intent(inout)  this )

private

Parameters

this	The entropy viscosity model.

Definition at line 413 of file entropy_viscosity.f90.

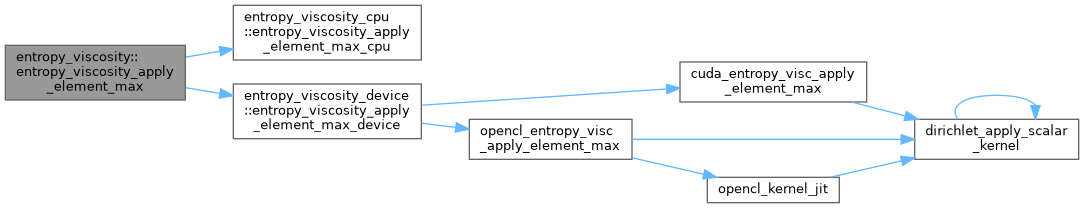

Here is the call graph for this function:

entropy_viscosity_col3_vector_cpu()

subroutine entropy_viscosity::entropy_viscosity_col3_vector_cpu ( real(kind=rp), dimension(n), intent(out)  us, real(kind=rp), dimension(n), intent(out)  vs, real(kind=rp), dimension(n), intent(out)  ws, real(kind=rp), dimension(n), intent(in)  u, real(kind=rp), dimension(n), intent(in)  v, real(kind=rp), dimension(n), intent(in)  w, real(kind=rp), dimension(n), intent(in)  s, integer, intent(in)  n  )

private

Parameters

us	Entropy-weighted first velocity component.
vs	Entropy-weighted second velocity component.
ws	Entropy-weighted third velocity component.
u	The first velocity component.
v	The second velocity component.
w	The third velocity component.
S	The entropy field.
n	Number of field entries.

Definition at line 515 of file entropy_viscosity.f90.

Here is the caller graph for this function:

entropy_viscosity_compute_entropy()

subroutine entropy_viscosity::entropy_viscosity_compute_entropy ( class(entropy_viscosity_t), intent(inout)  this )

private

Parameters

this	The entropy viscosity model.

Definition at line 465 of file entropy_viscosity.f90.

Here is the call graph for this function:

entropy_viscosity_compute_h()

subroutine entropy_viscosity::entropy_viscosity_compute_h ( class(entropy_viscosity_t), intent(inout)  this )

private

Todo:

Move this operation to a shared module.

Parameters

this	The entropy viscosity model.

Definition at line 573 of file entropy_viscosity.f90.

Here is the call graph for this function:

entropy_viscosity_compute_residual()

subroutine entropy_viscosity::entropy_viscosity_compute_residual ( class(entropy_viscosity_t), intent(inout)  this, integer, intent(in)  tstep, real(kind=rp), intent(in)  dt, real(kind=rp), dimension(10), intent(in)  dt_lag  )

private

Parameters

this	The entropy viscosity model.
tstep	The current time-step index.
dt	The current time-step size.
dt_lag	Previous time-step sizes.

Definition at line 233 of file entropy_viscosity.f90.

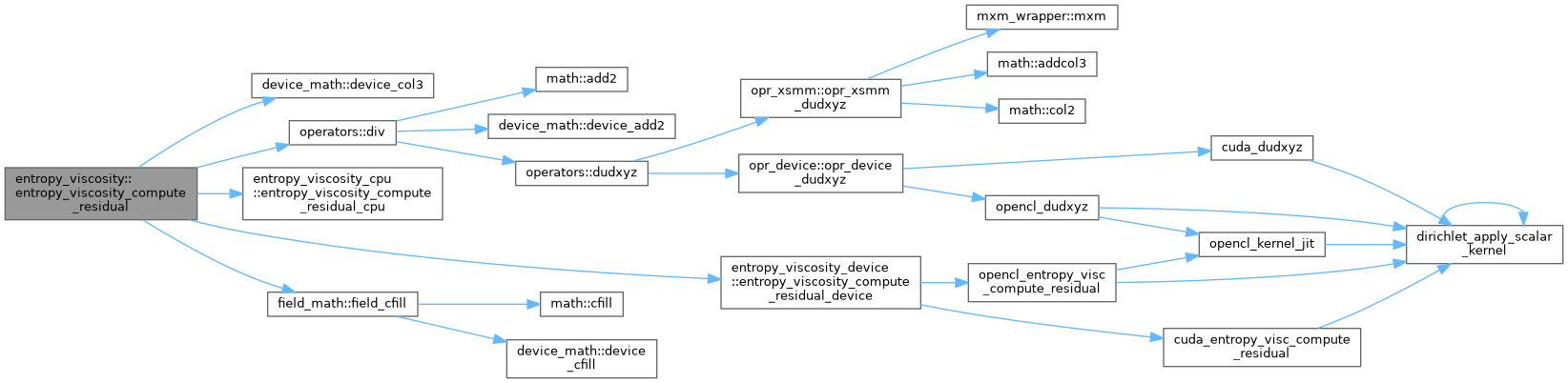

Here is the call graph for this function:

entropy_viscosity_compute_viscosity()

subroutine entropy_viscosity::entropy_viscosity_compute_viscosity ( class(entropy_viscosity_t), intent(inout)  this, integer, intent(in)  tstep  )

private

Parameters

this	The entropy viscosity model.
tstep	The current time-step index.

Definition at line 309 of file entropy_viscosity.f90.

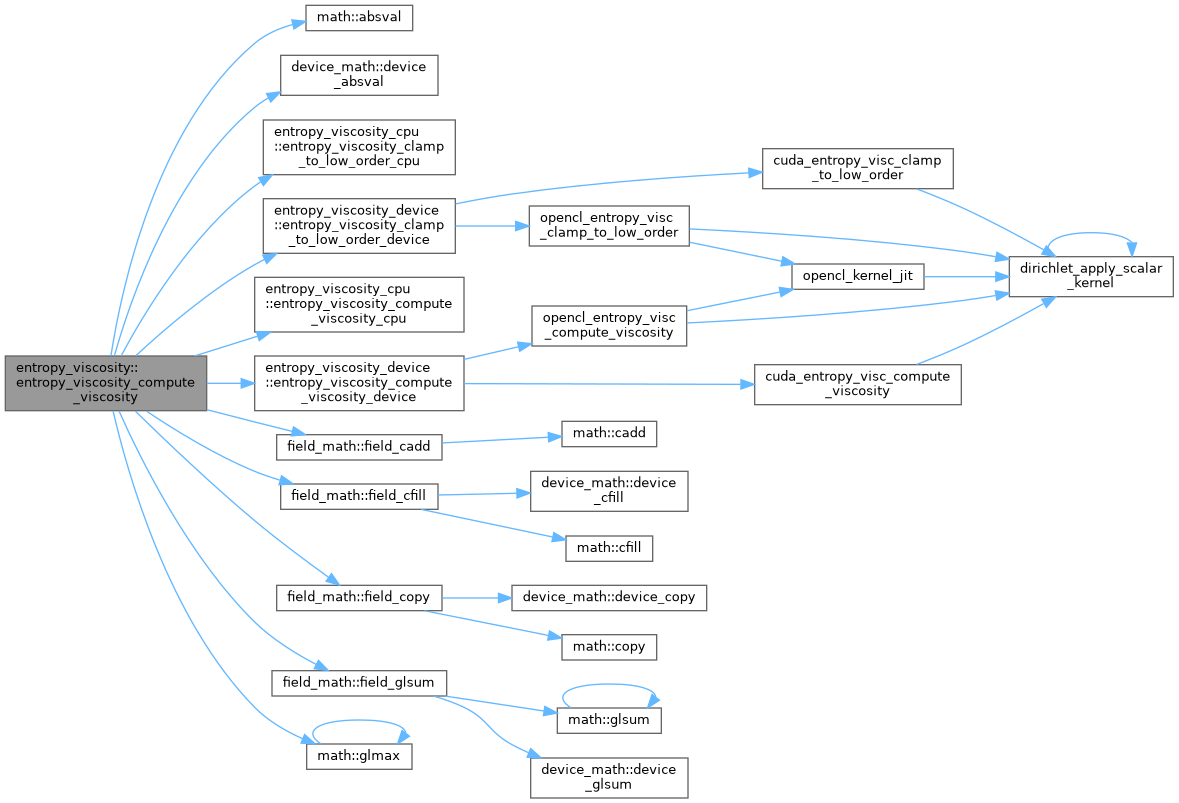

Here is the call graph for this function:

entropy_viscosity_free()

subroutine entropy_viscosity::entropy_viscosity_free ( class(entropy_viscosity_t), intent(inout)  this )

private

Parameters

this	The entropy viscosity model.

Definition at line 192 of file entropy_viscosity.f90.

entropy_viscosity_init()

subroutine entropy_viscosity::entropy_viscosity_init	(	class(entropy_viscosity_t), intent(inout)	this,
		class(case_t), intent(inout), target	case,
		type(json_file), intent(inout)	json
	)

Parameters

this	The entropy viscosity model.
case	The compressible-flow case.
json	The model configuration.

Definition at line 152 of file entropy_viscosity.f90.

entropy_viscosity_low_order()

pure real(kind=rp) function entropy_viscosity::entropy_viscosity_low_order ( class(entropy_viscosity_t), intent(in)  this, integer, intent(in)  i  )

private

Parameters

this	The entropy viscosity model.
i	The point index.

Returns

The low-order viscosity.

Definition at line 559 of file entropy_viscosity.f90.

entropy_viscosity_preprocess()

subroutine entropy_viscosity::entropy_viscosity_preprocess ( class(entropy_viscosity_t), intent(inout)  this, type(time_state_t), intent(in)  time  )

private

Parameters

this	The entropy viscosity model.
time	The current time state.

Definition at line 216 of file entropy_viscosity.f90.

entropy_viscosity_restart()

subroutine entropy_viscosity::entropy_viscosity_restart ( class(entropy_viscosity_t), intent(inout)  this, type(time_state_t), intent(in)  time  )

private

Parameters

this	The entropy viscosity model.
time	The restored time state.

Definition at line 484 of file entropy_viscosity.f90.

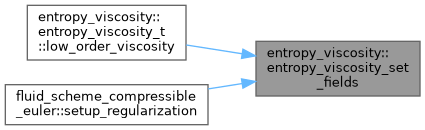

entropy_viscosity_set_fields()

subroutine entropy_viscosity::entropy_viscosity_set_fields ( class(entropy_viscosity_t), intent(inout)  this, type(field_t), intent(in), target  p, type(field_t), intent(in), target  rho, type(field_t), intent(in), target  u, type(field_t), intent(in), target  v, type(field_t), intent(in), target  w, type(field_t), intent(in), target  max_wave_speed, type(mesh_t), intent(in), target  msh, type(space_t), intent(in), target  xh, type(gs_t), intent(in), target  gs, real(kind=rp), intent(in)  gamma  )

private

Parameters

this	The entropy viscosity model.
p	The pressure field.
rho	The density field.
u	The first velocity component.
v	The second velocity component.
w	The third velocity component.
max_wave_speed	The maximum characteristic wave speed.
msh	The computational mesh.
Xh	The function space.
gs	The gather-scatter operator.
gamma	The ratio of specific heats.

Definition at line 441 of file entropy_viscosity.f90.

entropy_viscosity_smooth_viscosity()

subroutine entropy_viscosity::entropy_viscosity_smooth_viscosity ( class(entropy_viscosity_t), intent(inout)  this )

private

Parameters

this	The entropy viscosity model.

Definition at line 380 of file entropy_viscosity.f90.

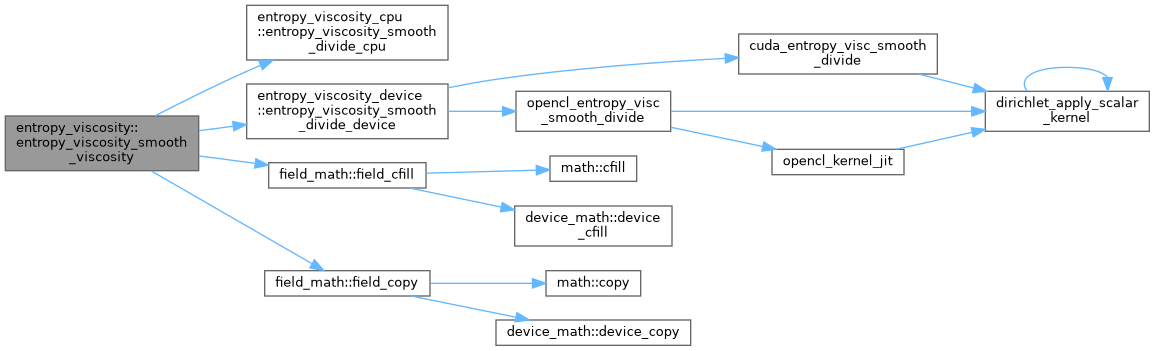

Here is the call graph for this function:

entropy_viscosity_update_lag()

subroutine entropy_viscosity::entropy_viscosity_update_lag ( class(entropy_viscosity_t), intent(inout)  this, type(time_state_t), intent(in)  time  )

private

Parameters

this	The entropy viscosity model.
time	The current time state.

Definition at line 496 of file entropy_viscosity.f90.
