Implements the field_subsampler_t simulation components, which allows for masking regions of the domain with a point_zone and to re-sample fields with a different polynomial order. More...

Inheritance diagram for field_subsampler::field_subsampler_t:

[legend]

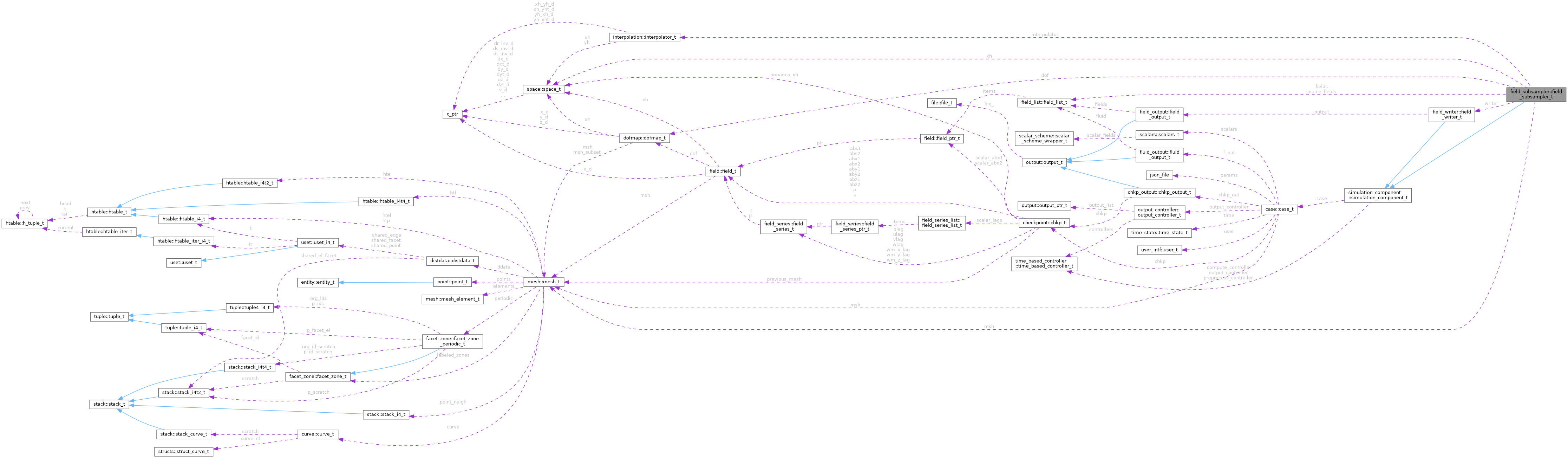

Collaboration diagram for field_subsampler::field_subsampler_t:

[legend]

Public Member Functions
procedure, pass(this)	init (this, json, case)
	Constructor from JSON.

procedure, pass(this)	init_common (this, name, which_fields, lx, point_zone)
	Common constructor.

procedure, pass(this)	free (this)
	Destructor.

procedure, pass(this)	compute_ (this, time)
	Compute the indicator (called according to the simcomp controller).

generic	init_from_components (this, name, case, order, preprocess_controller, compute_controller, output_controller, which_fields, lx, point_zone)
	Generic for constructing from components.

generic	init_from_components (this, name, case, order, preprocess_control, preprocess_value, compute_control, compute_value, output_control, output_value, which_fields, lx, point_zone)
	Generic for constructing from components.

procedure, pass(this)	init_from_controllers (this, name, case, order, preprocess_controller, compute_controller, output_controller, which_fields, lx, point_zone)
	Constructor from components, passing time_based_controllers.

procedure, pass(this)	init_from_controllers_properties (this, name, case, order, preprocess_control, preprocess_value, compute_control, compute_value, output_control, output_value, which_fields, lx, point_zone)
	Constructor from components, passing the properties of time_based_controllers.

procedure, pass(this)	check (this)
	Check valid initialization and assignment of variables.

procedure, pass(this)	init_base (this, json, case)
	Constructor for the simulation_component_t (base) class.

generic	init_base_from_components (this, case, order, preprocess_control, preprocess_value, compute_control, compute_value, output_control, output_value)
	Constructor for the simulation_component_t (base) class from components.

generic	init_base_from_components (this, case, order, preprocess_controller, compute_controller, output_controller)
	Constructor for the simulation_component_t (base) class from components.

procedure, pass(this)	init_base_from_controllers (this, case, order, preprocess_controller, compute_controller, output_controller)
	Constructor for the simulation_component_t (base) class from time_based_controllers, essentially directly from all components (we reserve the `_from_components` name for the generic binding).

procedure, pass(this)	init_base_from_controllers_properties (this, case, order, preprocess_control, preprocess_value, compute_control, compute_value, output_control, output_value)
	Constructor for the simulation_component_t (base) class from properties of time_based_controllers, so the latter are constructed instead of assigned.

procedure, pass(this)	free_base (this)
	Destructor for the simulation_component_t (base) class.

procedure, pass(this)	restart (this, time)
	Wrapper for calling `set_counter` for the time based controllers. Serves as the public interface.

procedure, pass(this)	preprocess (this, time)
	Wrapper for calling `preprocess_` based on the `preprocess_controller`. Serves as the public interface.

procedure, pass(this)	compute (this, time)
	Wrapper for calling `compute_` based on the `compute_controller`. Serves as the public interface.

procedure(simulation_component_init), deferred, pass	init (this, json, case)
	The common constructor using a JSON dictionary.

procedure(simulation_component_free), deferred, pass	free (this)
	Destructor.

procedure, pass(this)	preprocess_ (this, time)
	The preprocessing function to be executed during the run.

procedure, pass(this)	compute_ (this, time)
	The main function to be executed during the run.

procedure, pass(this)	restart_ (this, time)
	The restart function to be called upon restarting simulation.

procedure, pass(this)	parse_json (this, json, case_params, preprocess_control, preprocess_value, compute_control, compute_value, output_control, output_value)
	JSON parameter parser for the time-based controllers.

Public Attributes
procedure(compute_intrf), pointer, pass	compute_impl => dummy_compute
	Abstract interface for the compute() subroutine, which will be assigned at runtime depending on the subsampling method used.

character(len=80), dimension(:), allocatable	field_names
	Fields to subsample.

integer	n_fields = 0
	Number of fields to subsample (size of field_names).

type(field_list_t)	fields
	Pointers to the subsampled fields in the registry.

type(field_list_t)	source_fields
	Pointers to the source fields in the registry.

type(field_writer_t)	writer
	Internal field writer object for output.

type(dofmap_t)	dof
	The dofmap to use for the newly created masked/re-sampled fields.

class(point_zone_t), pointer	point_zone => null()
	Point zone to use for subsampling.

type(mesh_t), pointer	msh => null()
	Points to the new mesh for element masking. If no point zone, is used, thismsh will point to the same mesh as the current sim.

logical	internal_mesh = .false.
	Indicates if the instance of msh is internally managed.

integer	lx = -1
	New polynomial order to use for subsampling.

type(interpolator_t)	interpolator
	Space-to-space interpolator object.

type(space_t), pointer	xh => null()
	Points to the new space for resampling. If no point zone is provided, will point to the same space as the current sim. Otherwise, will point to its own masked one.

logical	internal_space = .false.
	Indicates if the instance of msh is internally managed. Also serves as a flag for determining whether or not to perform space-to-space interpolation.

logical	checked = .false.
	Flag to indicate whether thischeck() has been called and no errors were found.

type(case_t), pointer	case
	Pointer to the simulation case.

type(time_based_controller_t)	preprocess_controller
	Controller for when to run `preprocess`.

type(time_based_controller_t)	compute_controller
	Controller for when to run `compute`.

type(time_based_controller_t)	output_controller
	Controller for when to do output.

integer	order
	The execution order, lowest excutes first.

character(:), allocatable	name
	Unique name of the simcomp.

Detailed Description

Definition at line 71 of file field_subsampler.f90.

Member Function/Subroutine Documentation

◆ check()

procedure, pass(this) field_subsampler::field_subsampler_t::check ( class(field_subsampler_t), intent(inout) this )

Definition at line 144 of file field_subsampler.f90.

◆ compute()

procedure, pass(this) simulation_component::simulation_component_t::compute	(	class(simulation_component_t), intent(inout)	this,
		type(time_state_t), intent(in)	time
	)

inherited

Parameters

time	The current time.

Definition at line 91 of file simulation_component.f90.

◆ compute_() [1/2]

procedure, pass(this) field_subsampler::field_subsampler_t::compute_	(	class(field_subsampler_t), intent(inout)	this,
		type(time_state_t), intent(in)	time
	)

Definition at line 132 of file field_subsampler.f90.

◆ compute_() [2/2]

procedure, pass(this) simulation_component::simulation_component_t::compute_	(	class(simulation_component_t), intent(inout)	this,
		type(time_state_t), intent(in)	time
	)

inherited

Parameters

time	The current time.

Definition at line 99 of file simulation_component.f90.

◆ free() [1/2]

procedure, pass(this) field_subsampler::field_subsampler_t::free ( class(field_subsampler_t), intent(inout) this )

Definition at line 130 of file field_subsampler.f90.

◆ free() [2/2]

procedure(simulation_component_free), deferred, pass simulation_component::simulation_component_t::free ( class(simulation_component_t), intent(inout) this )

pure virtualinherited

Definition at line 95 of file simulation_component.f90.

◆ free_base()

procedure, pass(this) simulation_component::simulation_component_t::free_base ( class(simulation_component_t), intent(inout) this )

inherited

Definition at line 81 of file simulation_component.f90.

◆ init() [1/2]

procedure, pass(this) field_subsampler::field_subsampler_t::init	(	class(field_subsampler_t), intent(inout), target	this,
		type(json_file), intent(inout)	json,
		class(case_t), intent(inout), target	case
	)

Definition at line 125 of file field_subsampler.f90.

◆ init() [2/2]

procedure(simulation_component_init), deferred, pass simulation_component::simulation_component_t::init	(	class(simulation_component_t), intent(inout), target	this,
		type(json_file), intent(inout)	json,
		class(case_t), intent(inout), target	case
	)

pure virtualinherited

Definition at line 93 of file simulation_component.f90.

◆ init_base()

procedure, pass(this) simulation_component::simulation_component_t::init_base	(	class(simulation_component_t), intent(inout)	this,
		type(json_file), intent(inout)	json,
		class(case_t), intent(inout), target	case
	)

inherited

Definition at line 65 of file simulation_component.f90.

◆ init_base_from_components() [1/2]

generic simulation_component::simulation_component_t::init_base_from_components	(	class(simulation_component_t), intent(inout)	this,
		class(case_t), intent(inout), target	case,
		integer	order,
		character(len=*), intent(in)	preprocess_control,
		real(kind=rp), intent(in)	preprocess_value,
		character(len=*), intent(in)	compute_control,
		real(kind=rp), intent(in)	compute_value,
		character(len=*), intent(in)	output_control,
		real(kind=rp), intent(in)	output_value
	)

inherited

Parameters

case	The simulation case object.
order	The execution oder priority of the simcomp.
preprocess_controller	Control mode for preprocessing.
preprocess_value	Value parameter for preprocessing.
compute_controller	Control mode for computing.
compute_value	Value parameter for computing.
output_controller	Control mode for output.
output_value	Value parameter for output.

Definition at line 67 of file simulation_component.f90.

◆ init_base_from_components() [2/2]

generic simulation_component::simulation_component_t::init_base_from_components	(	class(simulation_component_t), intent(inout)	this,
		class(case_t), intent(inout), target	case,
		integer	order,
		type(time_based_controller_t), intent(in)	preprocess_controller,
		type(time_based_controller_t), intent(in)	compute_controller,
		type(time_based_controller_t), intent(in)	output_controller
	)

inherited

Parameters

case	The simulation case object.
order	The execution oder priority of the simcomp.
preprocess_controller	The controller for running preprocessing.
compute_controller	The controller for running compute.
output_controller	The controller for producing output.

Definition at line 67 of file simulation_component.f90.

◆ init_base_from_controllers()

procedure, pass(this) simulation_component::simulation_component_t::init_base_from_controllers	(	class(simulation_component_t), intent(inout)	this,
		class(case_t), intent(inout), target	case,
		integer	order,
		type(time_based_controller_t), intent(in)	preprocess_controller,
		type(time_based_controller_t), intent(in)	compute_controller,
		type(time_based_controller_t), intent(in)	output_controller
	)

inherited

Parameters

case	The simulation case object.
order	The execution oder priority of the simcomp.
preprocess_controller	The controller for running preprocessing.
compute_controller	The controller for running compute.
output_controller	The controller for producing output.

Definition at line 73 of file simulation_component.f90.

◆ init_base_from_controllers_properties()

procedure, pass(this) simulation_component::simulation_component_t::init_base_from_controllers_properties	(	class(simulation_component_t), intent(inout)	this,
		class(case_t), intent(inout), target	case,
		integer	order,
		character(len=*), intent(in)	preprocess_control,
		real(kind=rp), intent(in)	preprocess_value,
		character(len=*), intent(in)	compute_control,
		real(kind=rp), intent(in)	compute_value,
		character(len=*), intent(in)	output_control,
		real(kind=rp), intent(in)	output_value
	)

inherited

Parameters

case	The simulation case object.
order	The execution oder priority of the simcomp.
preprocess_controller	Control mode for preprocessing.
preprocess_value	Value parameter for preprocessing.
compute_controller	Control mode for computing.
compute_value	Value parameter for computing.
output_controller	Control mode for output.
output_value	Value parameter for output.

Definition at line 78 of file simulation_component.f90.

◆ init_common()

procedure, pass(this) field_subsampler::field_subsampler_t::init_common	(	class(field_subsampler_t), intent(inout)	this,
		character(len=*), intent(in)	name,
		character(len=*), dimension(:), intent(in)	which_fields,
		integer, intent(in), optional	lx,
		class(point_zone_t), intent(in), optional, pointer	point_zone
	)

Parameters

name	The unique name of the simcomp.
which_fields	The names of the fields to be subsampled.
lx	The number of GLL points to use for subsampling.
point_zone	The point zone to use for subsampling.

Definition at line 127 of file field_subsampler.f90.

◆ init_from_components() [1/2]

generic field_subsampler::field_subsampler_t::init_from_components	(	class(field_subsampler_t), intent(inout)	this,
		character(len=*), intent(in)	name,
		class(case_t), intent(inout), target	case,
		integer	order,
		character(len=*), intent(in)	preprocess_control,
		real(kind=rp), intent(in)	preprocess_value,
		character(len=*), intent(in)	compute_control,
		real(kind=rp), intent(in)	compute_value,
		character(len=*), intent(in)	output_control,
		real(kind=rp), intent(in)	output_value,
		character(len=*), dimension(:), intent(in)	which_fields,
		integer, intent(in), optional	lx,
		class(point_zone_t), intent(in), optional, pointer	point_zone
	)

Parameters

name	The unique name of the simcomp.
case	The simulation case object.
order	The execution oder priority of the simcomp.
preprocess_controller	Control mode for preprocessing.
preprocess_value	Value parameter for preprocessing.
compute_controller	Control mode for computing.
compute_value	Value parameter for computing.
output_controller	Control mode for output.
output_value	Value parameter for output.
which_fields	List of field names to subsample.
lx	Number of GLL points to use for the space-to-space interpolation.
point_zone	Point zone to use for the subsampling.

Definition at line 134 of file field_subsampler.f90.

◆ init_from_components() [2/2]

generic field_subsampler::field_subsampler_t::init_from_components	(	class(field_subsampler_t), intent(inout)	this,
		character(len=*), intent(in)	name,
		class(case_t), intent(inout), target	case,
		integer	order,
		type(time_based_controller_t), intent(in)	preprocess_controller,
		type(time_based_controller_t), intent(in)	compute_controller,
		type(time_based_controller_t), intent(in)	output_controller,
		character(len=*), dimension(:), intent(in)	which_fields,
		integer, intent(in)	lx,
		class(point_zone_t), intent(in), optional, pointer	point_zone
	)

Parameters

name	The unique name of the simcomp.
case	The simulation case object.
order	The execution oder priority of the simcomp.
preprocess_controller	The controller for running preprocessing.
compute_controller	The controller for running compute.
output_controller	The controller for producing output.
which_fields	List of field names to subsample.
lx	Number of GLL points to use for the space-to-space interpolation.
point_zone	Point zone to use for the subsampling.

Definition at line 134 of file field_subsampler.f90.

◆ init_from_controllers()

procedure, pass(this) field_subsampler::field_subsampler_t::init_from_controllers	(	class(field_subsampler_t), intent(inout)	this,
		character(len=*), intent(in)	name,
		class(case_t), intent(inout), target	case,
		integer	order,
		type(time_based_controller_t), intent(in)	preprocess_controller,
		type(time_based_controller_t), intent(in)	compute_controller,
		type(time_based_controller_t), intent(in)	output_controller,
		character(len=*), dimension(:), intent(in)	which_fields,
		integer, intent(in)	lx,
		class(point_zone_t), intent(in), optional, pointer	point_zone
	)

Parameters

name	The unique name of the simcomp.
case	The simulation case object.
order	The execution oder priority of the simcomp.
preprocess_controller	The controller for running preprocessing.
compute_controller	The controller for running compute.
output_controller	The controller for producing output.
which_fields	List of field names to subsample.
lx	Number of GLL points to use for the space-to-space interpolation.
point_zone	Point zone to use for the subsampling.

Definition at line 137 of file field_subsampler.f90.

◆ init_from_controllers_properties()

procedure, pass(this) field_subsampler::field_subsampler_t::init_from_controllers_properties	(	class(field_subsampler_t), intent(inout)	this,
		character(len=*), intent(in)	name,
		class(case_t), intent(inout), target	case,
		integer	order,
		character(len=*), intent(in)	preprocess_control,
		real(kind=rp), intent(in)	preprocess_value,
		character(len=*), intent(in)	compute_control,
		real(kind=rp), intent(in)	compute_value,
		character(len=*), intent(in)	output_control,
		real(kind=rp), intent(in)	output_value,
		character(len=*), dimension(:), intent(in)	which_fields,
		integer, intent(in), optional	lx,
		class(point_zone_t), intent(in), optional, pointer	point_zone
	)

Parameters

name	The unique name of the simcomp.
case	The simulation case object.
order	The execution oder priority of the simcomp.
preprocess_controller	Control mode for preprocessing.
preprocess_value	Value parameter for preprocessing.
compute_controller	Control mode for computing.
compute_value	Value parameter for computing.
output_controller	Control mode for output.
output_value	Value parameter for output.
which_fields	List of field names to subsample.
lx	Number of GLL points to use for the space-to-space interpolation.
point_zone	Point zone to use for the subsampling.

Definition at line 141 of file field_subsampler.f90.

◆ parse_json()

procedure, pass(this) simulation_component::simulation_component_t::parse_json	(	class(simulation_component_t), intent(inout)	this,
		type(json_file), intent(inout)	json,
		type(json_file), intent(inout)	case_params,
		character(len=:), intent(inout), allocatable	preprocess_control,
		real(kind=rp), intent(out)	preprocess_value,
		character(len=:), intent(inout), allocatable	compute_control,
		real(kind=rp), intent(out)	compute_value,
		character(len=:), intent(inout), allocatable	output_control,
		real(kind=rp), intent(out)	output_value
	)

inherited

Parameters

json	The JSON dictionary of the simcomp.
case_params	The entire case configuration JSON.
preprocess_value	Control mode for preprocessing.
preprocess_controller	Value parameter for preprocessing.
compute_controller	Control mode for computing.
compute_controller	Value parameter for computing.
output_controller	Control mode for output.
output_controller	Value parameter for output.

Definition at line 103 of file simulation_component.f90.

◆ preprocess()

procedure, pass(this) simulation_component::simulation_component_t::preprocess	(	class(simulation_component_t), intent(inout)	this,
		type(time_state_t), intent(in)	time
	)

inherited

Parameters

time	The current time.

Definition at line 87 of file simulation_component.f90.

◆ preprocess_()

procedure, pass(this) simulation_component::simulation_component_t::preprocess_	(	class(simulation_component_t), intent(inout)	this,
		type(time_state_t), intent(in)	time
	)

inherited

Parameters

time	The current time.

Definition at line 97 of file simulation_component.f90.

◆ restart()

procedure, pass(this) simulation_component::simulation_component_t::restart	(	class(simulation_component_t), intent(inout)	this,
		type(time_state_t), intent(in)	time
	)

inherited

Parameters

time	The current time.

Definition at line 84 of file simulation_component.f90.

◆ restart_()

procedure, pass(this) simulation_component::simulation_component_t::restart_	(	class(simulation_component_t), intent(inout)	this,
		type(time_state_t), intent(in)	time
	)

inherited

Parameters

time	The current time.

Definition at line 101 of file simulation_component.f90.

Member Data Documentation

◆ case

type(case_t), pointer simulation_component::simulation_component_t::case

inherited

Definition at line 52 of file simulation_component.f90.

◆ checked

logical field_subsampler::field_subsampler_t::checked = .false.

Definition at line 121 of file field_subsampler.f90.

◆ compute_controller

type(time_based_controller_t) simulation_component::simulation_component_t::compute_controller

inherited

Definition at line 56 of file simulation_component.f90.

◆ compute_impl

procedure(compute_intrf), pointer, pass field_subsampler::field_subsampler_t::compute_impl => dummy_compute

Definition at line 75 of file field_subsampler.f90.

◆ dof

type(dofmap_t) field_subsampler::field_subsampler_t::dof

Definition at line 89 of file field_subsampler.f90.

◆ field_names

character(len=80), dimension(:), allocatable field_subsampler::field_subsampler_t::field_names

Definition at line 79 of file field_subsampler.f90.

◆ fields

type(field_list_t) field_subsampler::field_subsampler_t::fields

Definition at line 83 of file field_subsampler.f90.

◆ internal_mesh

logical field_subsampler::field_subsampler_t::internal_mesh = .false.

Definition at line 101 of file field_subsampler.f90.

◆ internal_space

logical field_subsampler::field_subsampler_t::internal_space = .false.

Definition at line 117 of file field_subsampler.f90.

◆ interpolator

type(interpolator_t) field_subsampler::field_subsampler_t::interpolator

Definition at line 109 of file field_subsampler.f90.

◆ lx

integer field_subsampler::field_subsampler_t::lx = -1

Definition at line 107 of file field_subsampler.f90.

◆ msh

type(mesh_t), pointer field_subsampler::field_subsampler_t::msh => null()

Definition at line 99 of file field_subsampler.f90.

◆ n_fields

integer field_subsampler::field_subsampler_t::n_fields = 0

Definition at line 81 of file field_subsampler.f90.

◆ name

character(:), allocatable simulation_component::simulation_component_t::name

inherited

Definition at line 62 of file simulation_component.f90.

◆ order

integer simulation_component::simulation_component_t::order

inherited

Definition at line 60 of file simulation_component.f90.

◆ output_controller

type(time_based_controller_t) simulation_component::simulation_component_t::output_controller

inherited

Definition at line 58 of file simulation_component.f90.

◆ point_zone

class(point_zone_t), pointer field_subsampler::field_subsampler_t::point_zone => null()

Definition at line 95 of file field_subsampler.f90.

◆ preprocess_controller

type(time_based_controller_t) simulation_component::simulation_component_t::preprocess_controller

inherited

Definition at line 54 of file simulation_component.f90.

◆ source_fields

type(field_list_t) field_subsampler::field_subsampler_t::source_fields

Definition at line 85 of file field_subsampler.f90.

◆ writer

type(field_writer_t) field_subsampler::field_subsampler_t::writer

Definition at line 87 of file field_subsampler.f90.

◆ xh

type(space_t), pointer field_subsampler::field_subsampler_t::xh => null()

Definition at line 113 of file field_subsampler.f90.

The documentation for this type was generated from the following file:

/home/runner/work/neko/neko/src/simulation_components/field_subsampler.f90

Public Member Functions

Public Attributes

Detailed Description

Member Function/Subroutine Documentation

◆ check()

◆ compute()

◆ compute_() [1/2]

◆ compute_() [2/2]

◆ free() [1/2]

◆ free() [2/2]

◆ free_base()

◆ init() [1/2]

◆ init() [2/2]

◆ init_base()

◆ init_base_from_components() [1/2]

◆ init_base_from_components() [2/2]

◆ init_base_from_controllers()

◆ init_base_from_controllers_properties()

◆ init_common()

◆ init_from_components() [1/2]

◆ init_from_components() [2/2]

◆ init_from_controllers()

◆ init_from_controllers_properties()

◆ parse_json()

◆ preprocess()

◆ preprocess_()

◆ restart()

◆ restart_()

Member Data Documentation

◆ case

◆ checked

◆ compute_controller

◆ compute_impl

◆ dof

◆ field_names

◆ fields

◆ internal_mesh

◆ internal_space

◆ interpolator

◆ lx

◆ msh

◆ n_fields

◆ name

◆ order

◆ output_controller

◆ point_zone

◆ preprocess_controller

◆ source_fields

◆ writer

◆ xh
